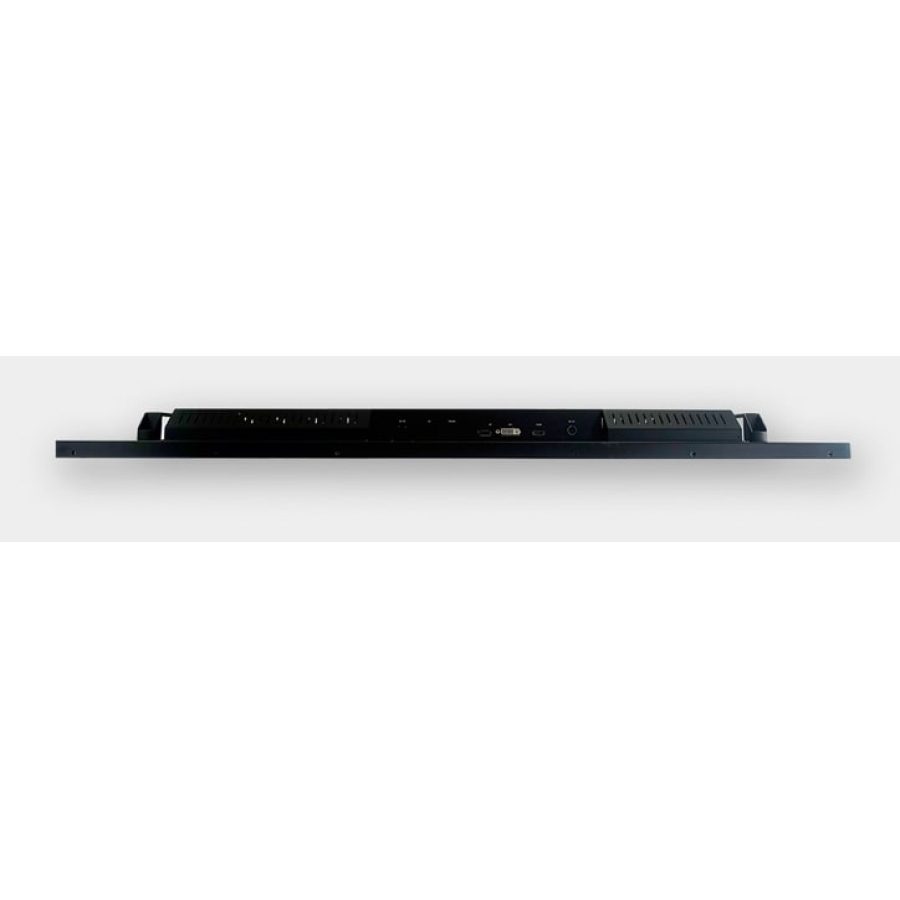

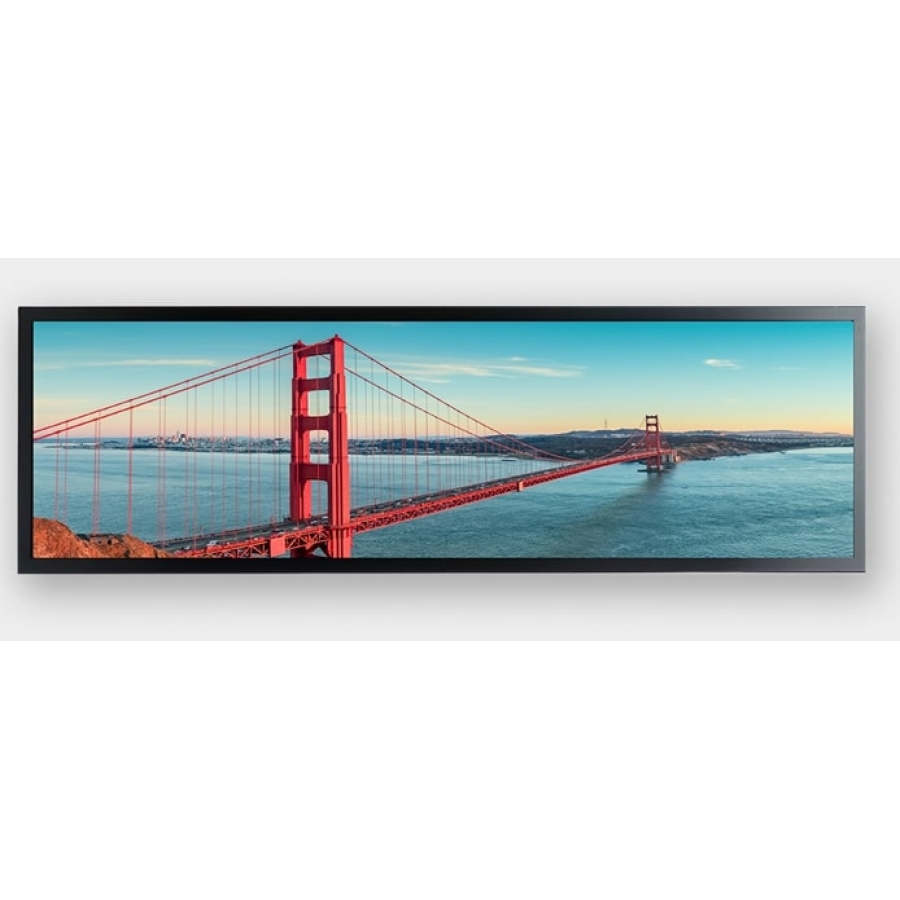

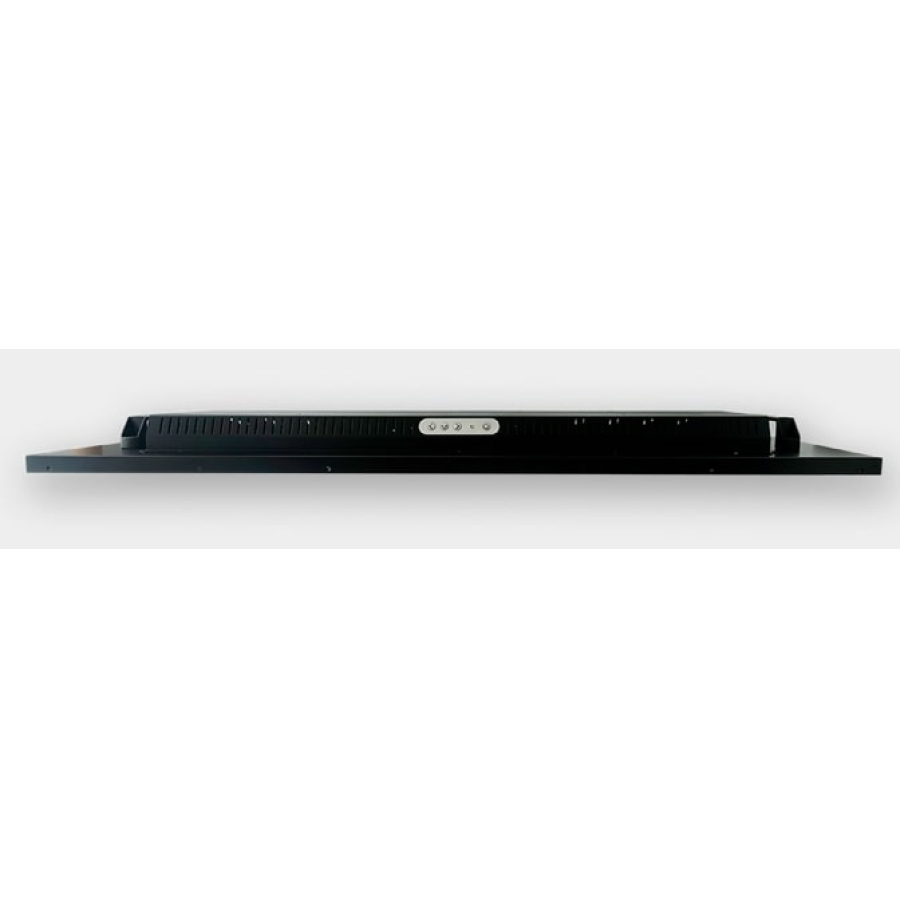

Litemax SSH3701-Y 37″ Stretch Digital 3000nit Ultra High Bright Display with 1920×540 Resolution and AD Control Board
Litemax SSH3701-Y 37″ Stretch Digital 3000nit Ultra High Bright Display with 1920×540 Resolution and AD Control Board
SSH3701-Y
- Ultra Wide Screen 16:4.5
- High Brightness 3000 nits
- Sunlight Readable
- LED Backlight
- Low Power Consumption
- LCD Blackening Defect Free(Hi-Tni 110 ˚C)
- BL MTBF: 100,000 hours
Details
The SSF/SSH3701-Y is a 37 inch color TFT-LCD display with special aspect ratio 16:4.5 and wide resolution 1920 x 540. It is Litemax’s Spanpixel series product which designed for high brightness with power efficiency LED backlight. It provides LCD panel with specific aspect ratios and sunlight readable for digital signage, public transportation, exhibition hall, department store, and vending machine.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
| Screen Size | 37" |
|---|---|
| Aspect Ratio | 16:4.5 |
| Resolution | 1920x540 |
| Brightness | 3000nit |
| Viewing Angle | 178/178 (H/V) |
| I/O | DP, DVI-I, HDMI |
| Operating Temperature | 0°C to 50°C |
