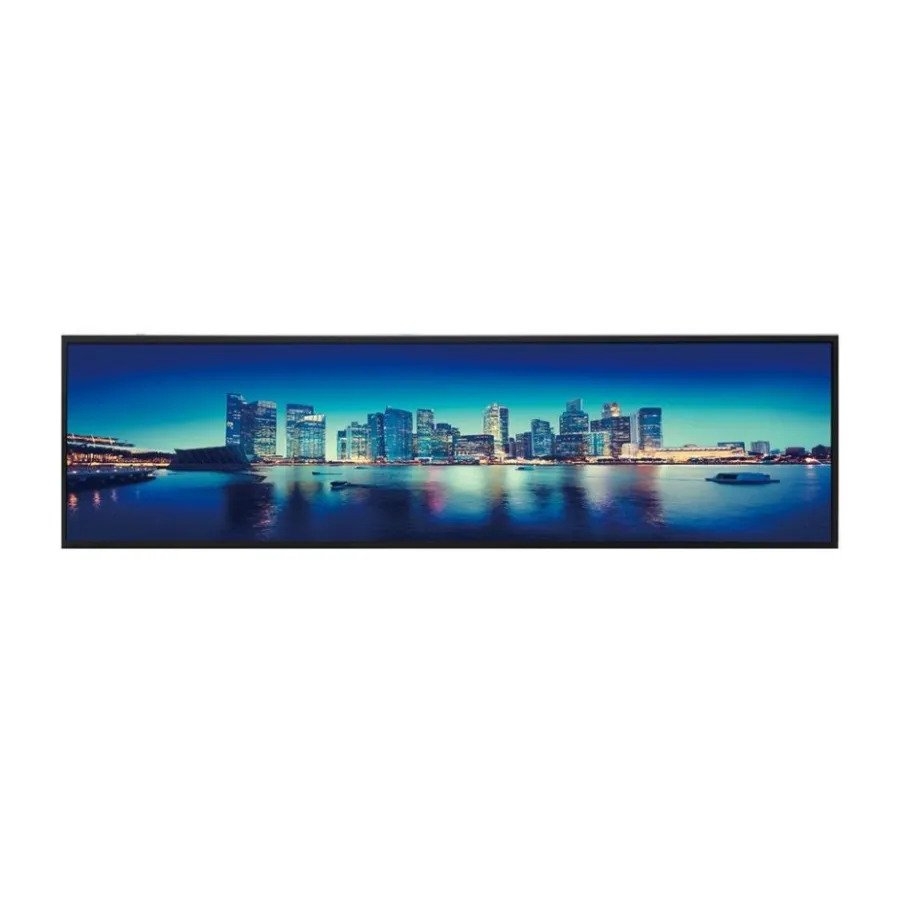

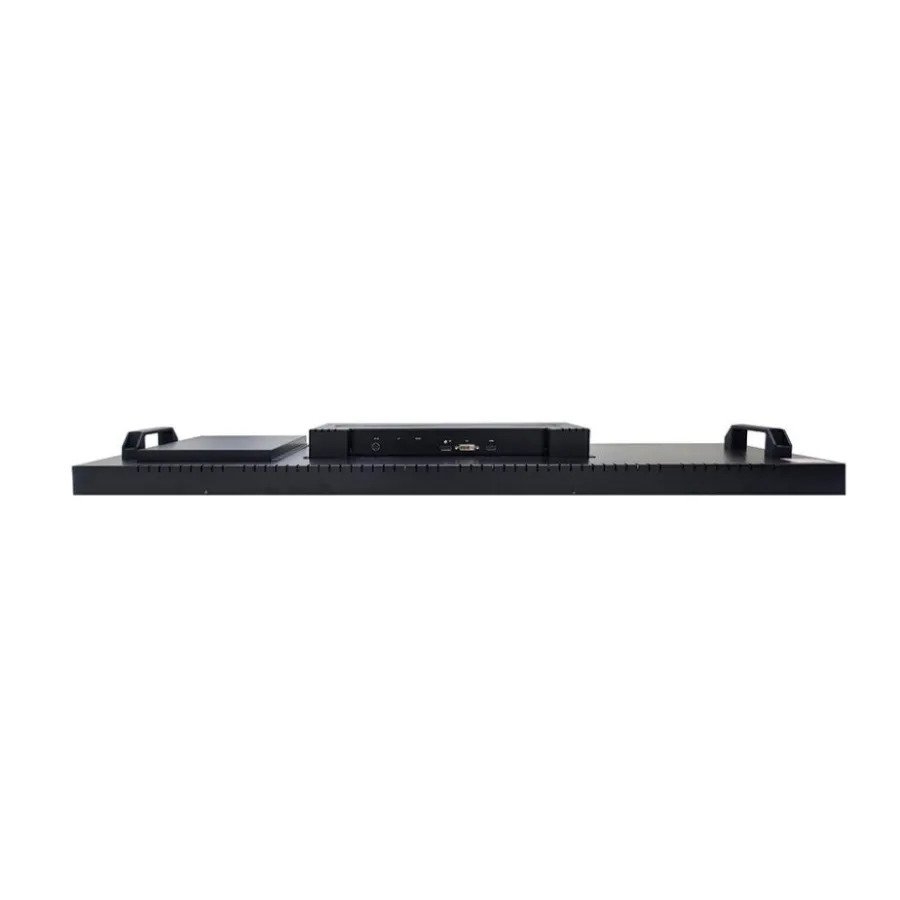

Litemax SSH4220-Y 42.2″ Ultra High Bright 2500nits Stretched Bar LCD Display

Litemax SSH4220-Y 42.2″ Ultra High Bright 2500nits Stretched Bar LCD Display

SSH4220-Y

  • Stretched LCD
  • Ultra-Wide Screen (16 : 4)
  • High Brightness 2500 nits
  • LED Backlight
  • LCD blacking defect free (Hi-Tni 110 ˚C)
  • Low Power Consumption
  • BL MTBF: 50,000 hours
-
+

Details

The Litemax SSH4220-Y is a 42.2″ Stretched Bar LCD Display with a special aspect ratio of 16:4 alongside a wide resolution of 1920×480. This display is part of Litemax’s Spanpixel series designed for sunlight readable application with 2500nit ultra high brightness whilst also incorporating a power efficiency LED backlight. The SSF4220-Y is suitable for digital signage applications including public transportation, exhibition halls, department stores and vending machines.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Screen Size 42.2"
Aspect Ratio 16:4
Resolution 1920x480
Brightness 2500nit
Viewing Angle 178/178 (H/V)
I/O DP, DVI-I, HDMI Input
Operating Temperature 0°C to 50°C
