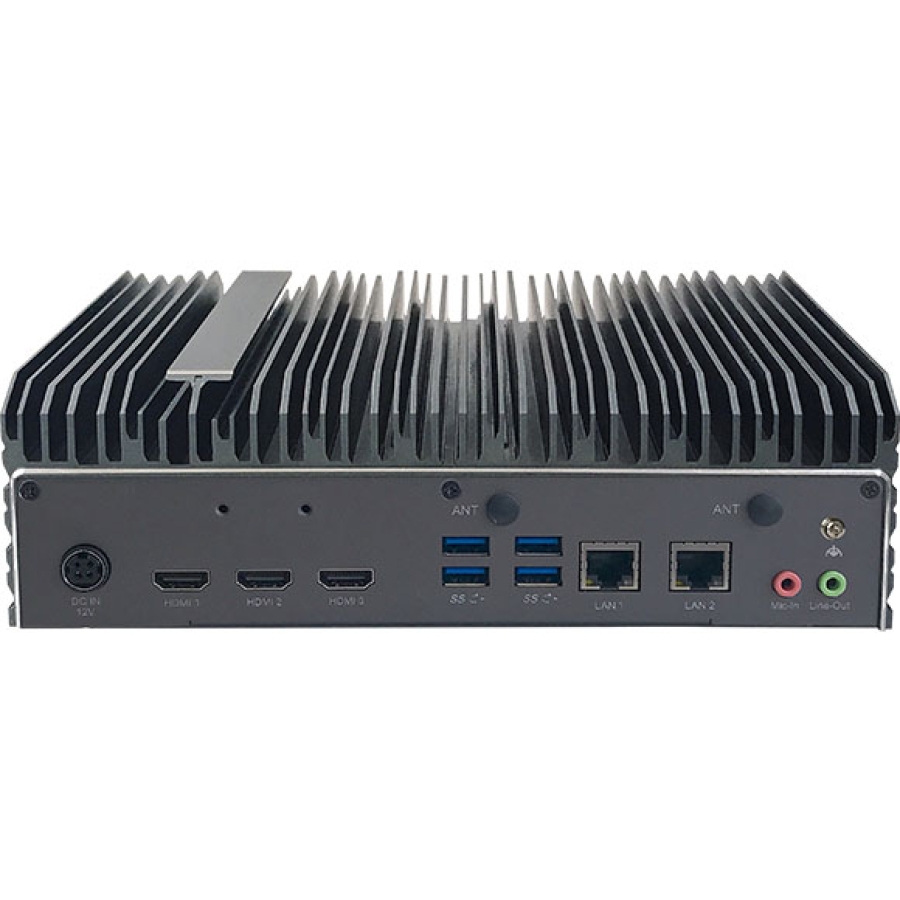

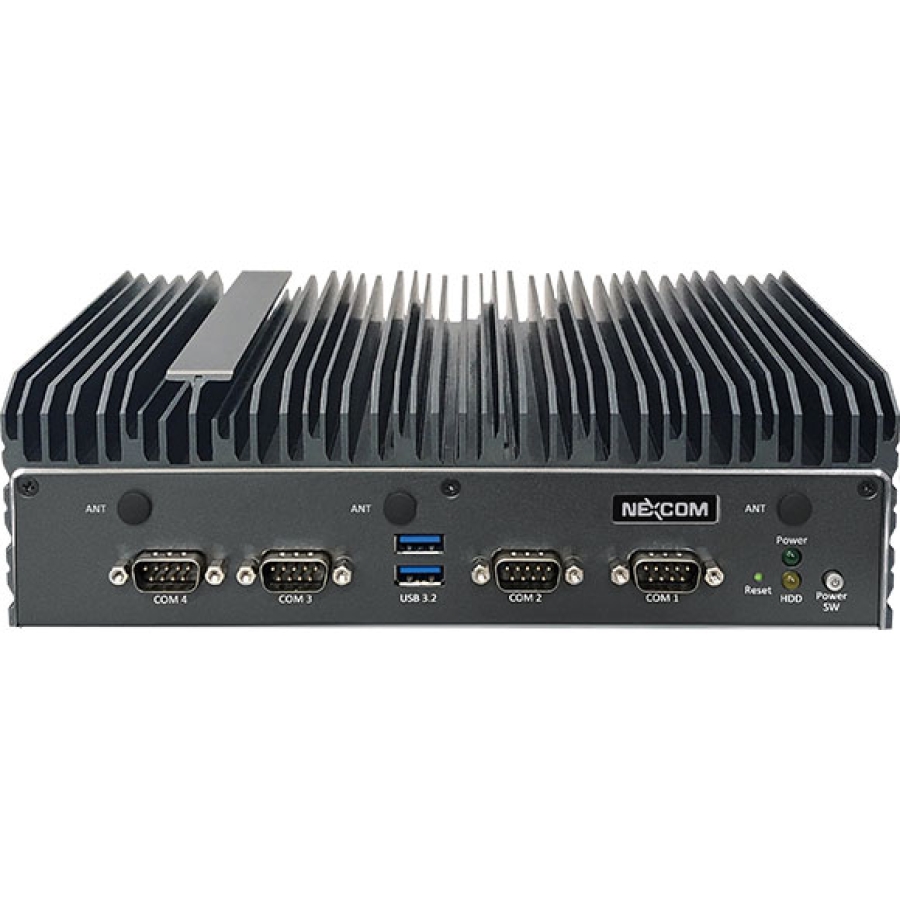

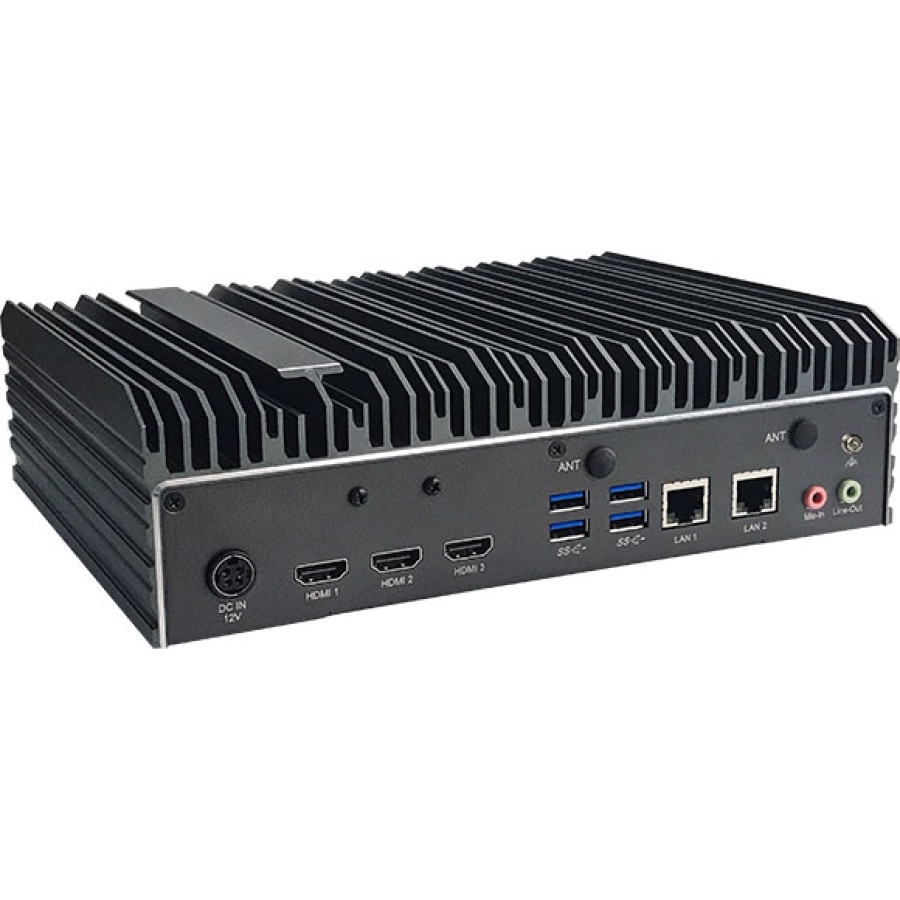

Nexcom NDiS B560 9th/8th Gen Intel Core i9/i7/i5/i3 Fanless Embedded Computer

Name: Nexcom NDiS B560 9th/8th Gen Intel Core i9/i7/i5/i3 Fanless Embedded Computer
SKU: NDiS B560
Availability: InStock

Nexcom

Nexcom NDiS B560 9th/8th Gen Intel Core i9/i7/i5/i3 Fanless Embedded Computer

NDiS B560

Support 9th and 8th Gen Intel Core i9/i7/i5/i3 LGA socket type embedded processor, up to 35W
Intel Q370
Intel integrated UHD 630 graphic engine
Support 3 independent 4K2K 60Hz display output
Support 1 x 2.5” SATA HDD
3 x HDMI 2.0, 6 x USB 3.0, 2 x GbE LAN, 4 x COM, 1 x Line-out, 1 x Mic-in
Support M.2 Key B/E/M
Fanless design
Support extended temperature -20~60°C

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: NDiS B560

Categories: Digital Signage Computers, Nexcom, Wide Temperature

Range: Nexcom

Details

Powered by the 9th and 8th generation Intel Core processor series and Intel 300 Series chipset integrated graphics controller, the NDiS B560 fanless embedded system can handle powerful multimedia content. In addition, the NDiS B560 can be operated in an extended operating temperature range between -20 to 60 Celsius degree, with three 4K2K independent display output and rich connectives including Wi-Fi and 4G, 5G support, the NDiS B560 can fully satisfy customer’s expectation and therefore be used in both in-door and out-door applications such as self-service KIOSK, vending machine, hospitality, and passenger information at outdoor bus station.

Downloads

Datasheet (NDiS B560) (PDF)

0.43MB
