ProDVX APPC-7XPLN 7″ RK3568 Quad-core Android Panel PC with PCAP Touch and Integrated NFC

APPC-7XPLN

Panel Type: TFT LCD
Resolution: 1024×600
Aspect Ratio: 17:10 Wide
Brightness: 300 cd/m2
Viewing Angle: H140 / V130
Touch Type: 10 TP PCAP 10ms
Chipset: Cortex A55, 2.0 GHz, 4-Core
CPU: RK3568 (Quad-core ARM Cortex-A55)
Cooling: Fanless
Mounting / VESA: VESA 75
Power Supply: 12 V / 2 A

Product Code: APPC-7XPLN

Categories: Commercial Displays, Display Resolutions, ProDVX Commercial Displays, Small Displays, Specialist Displays, Touchscreen Android OS, Touchscreen Displays

Details

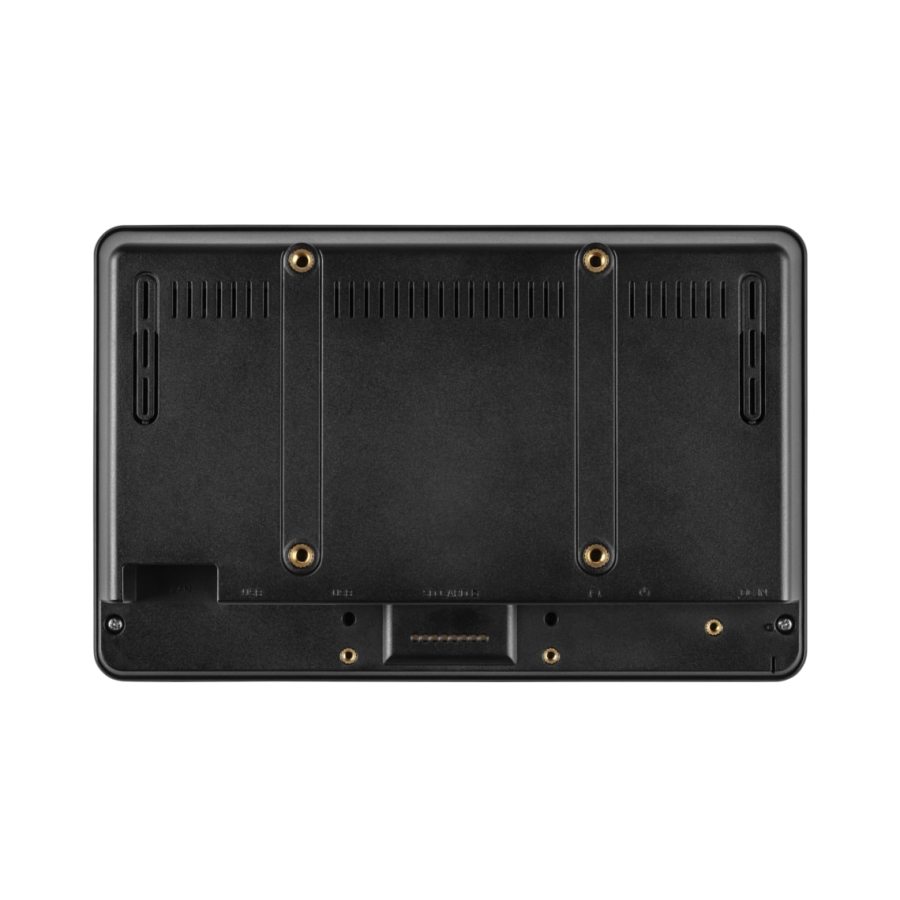

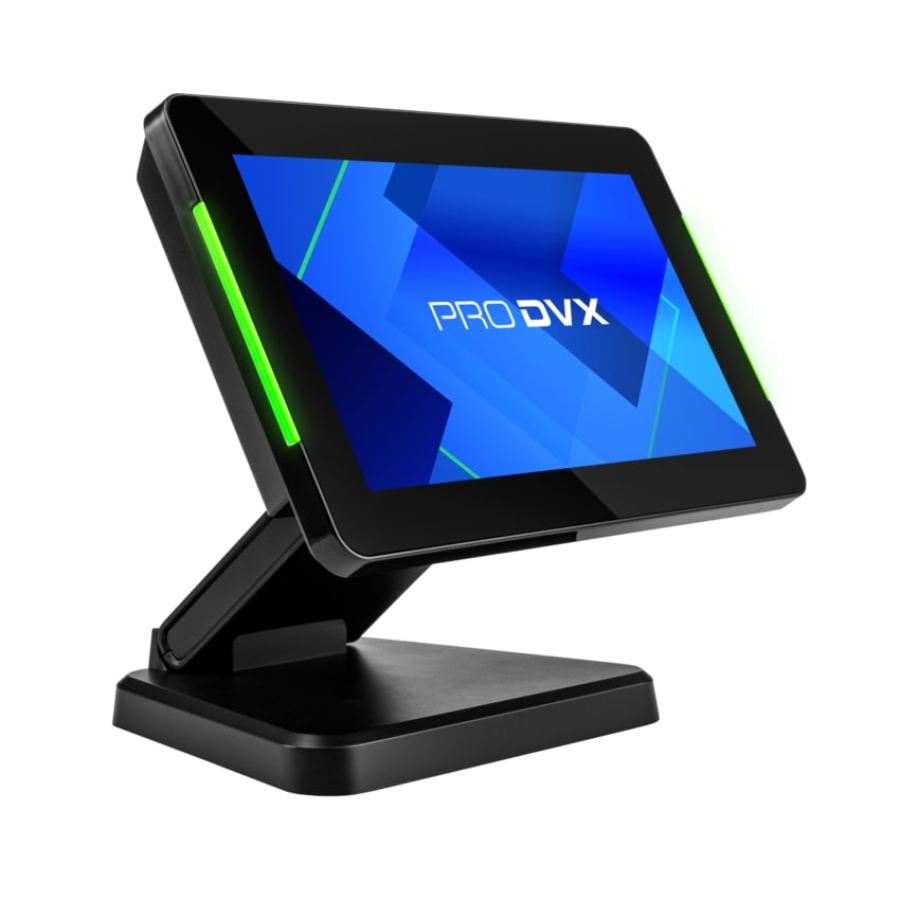

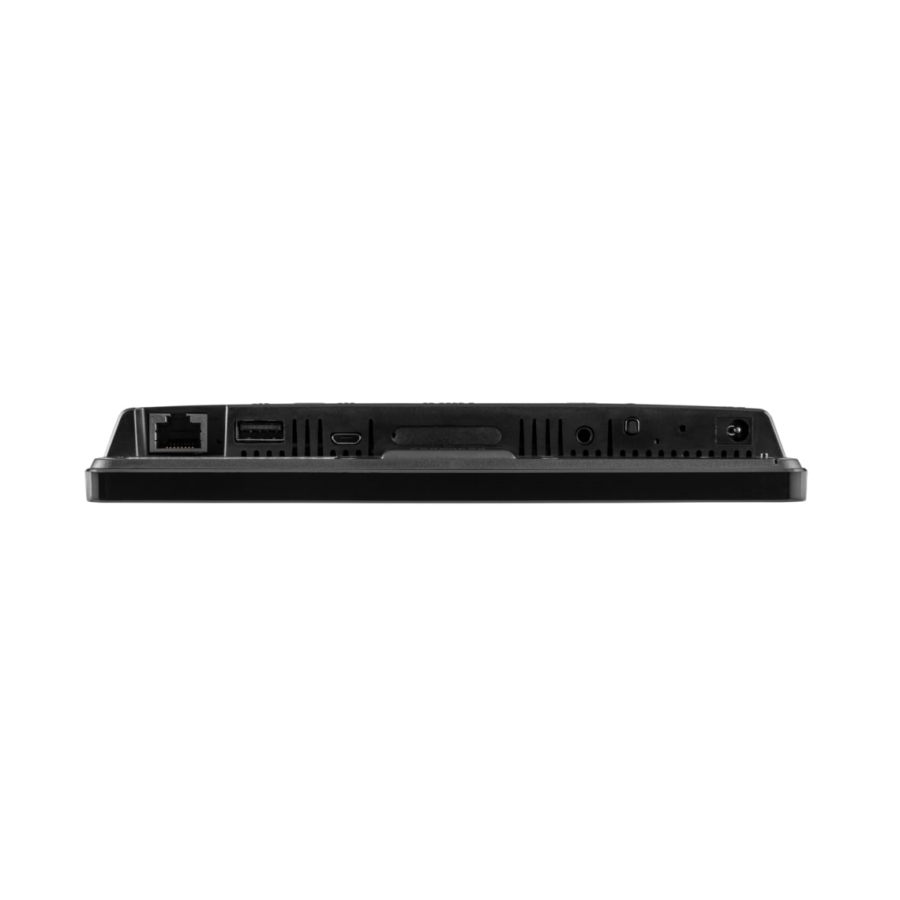

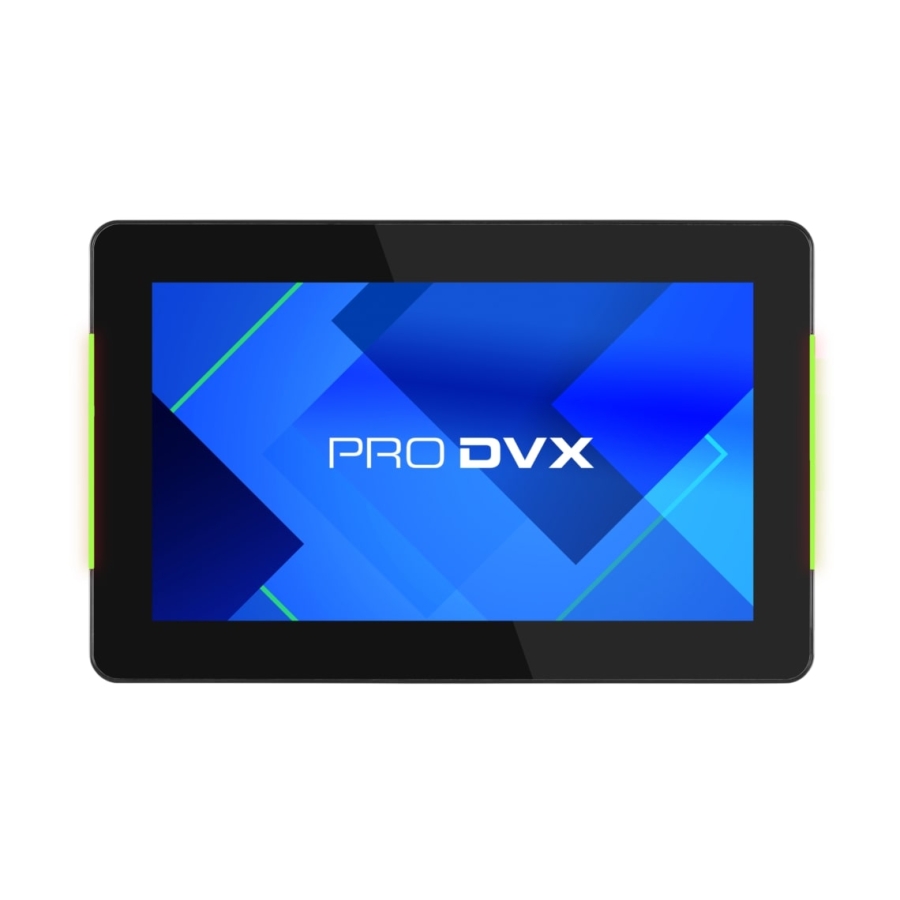

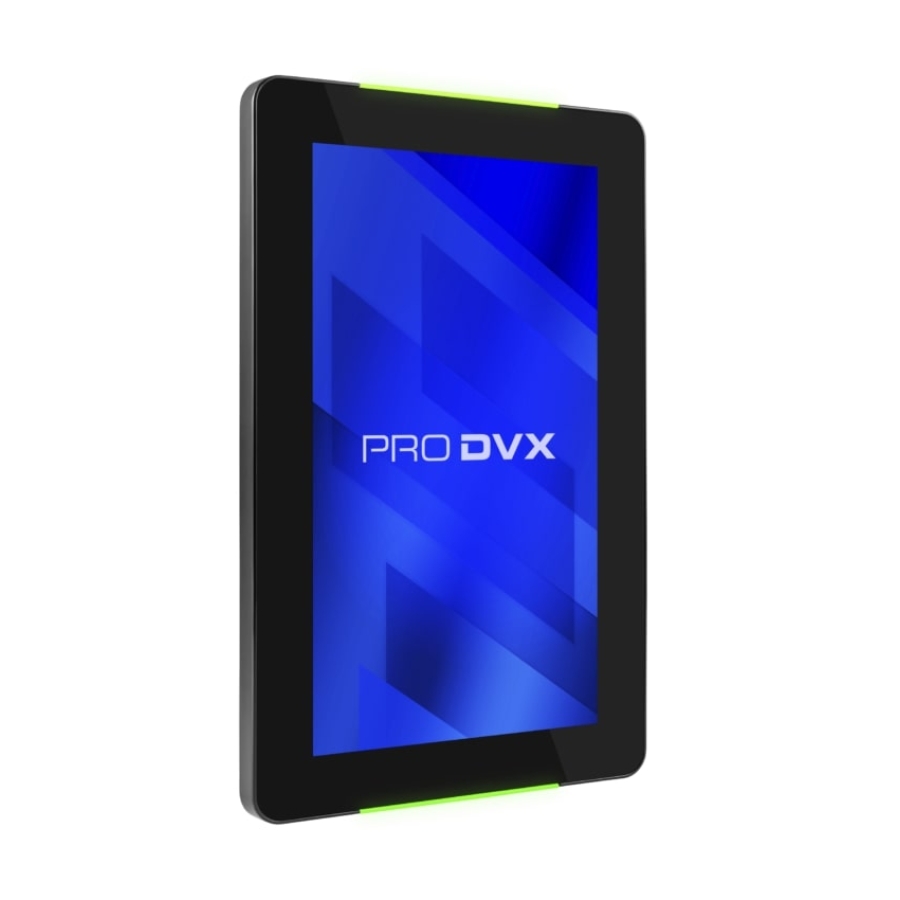

The APPC-7XPLN (R23-7281) is a 7-inch Android Panel PC running on Android 12. Powered by the quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device ensures seamless operation and advanced graphical capabilities. With 4GB RAM and 16GB storage, multitasking becomes efficient, while IEEE 802.3at PoE+ support streamlines power and connectivity. Installation is a breeze with VESA mounting capability and a single PoE+ Ethernet cable, eliminating wiring complexities. Connectivity is crucial, offering various I/O ports for peripheral devices, making it ideal for retail, corporate, and industrial settings. The 7-inch touchscreen interface, driven by Android, ensures intuitive navigation, complemented by dual-sided RGB LED status lights. This Android Panel PC supports 10-point PCAP touch functionality and has received a non-glare treatment for enhanced visibility. Additionally, the APPC-7XPLN (R23-7281) includes an integrated NFC module for added functionalities.

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Screen Size	7"
Resolution	1024x600
Brightness	300nit
Glass Type	Anti-Glare
Touch Technology	PCAP
Speaker	Yes
Mounting	VESA
Operating Temperature	0°C to 40°C
Built In Media Player	Yes
CPU	ARM
GPU	Yes
LAN	Yes
Wi-Fi	Yes
OS	Android
