Samsung OH75F 75″ High Bright Outdoor Display 24/7 Usage 2500nit

Name: Samsung OH75F 75" High Bright Outdoor Display 24/7 Usage 2500nit
SKU: OH75F
Availability: InStock

Samsung

Samsung OH75F 75″ High Bright Outdoor Display 24/7 Usage 2500nit

OH75F

Brand: Samsung
IP56 dust and liquid protection
IK10 rated vandalism protection
Sunlight readable anti-reflective screen 2500 NITS
Built-in media player
Bezel Size: 59.8mm
Size: 1774.8mm (H) x 1053.4mm (W) x 120mm (D)

Details

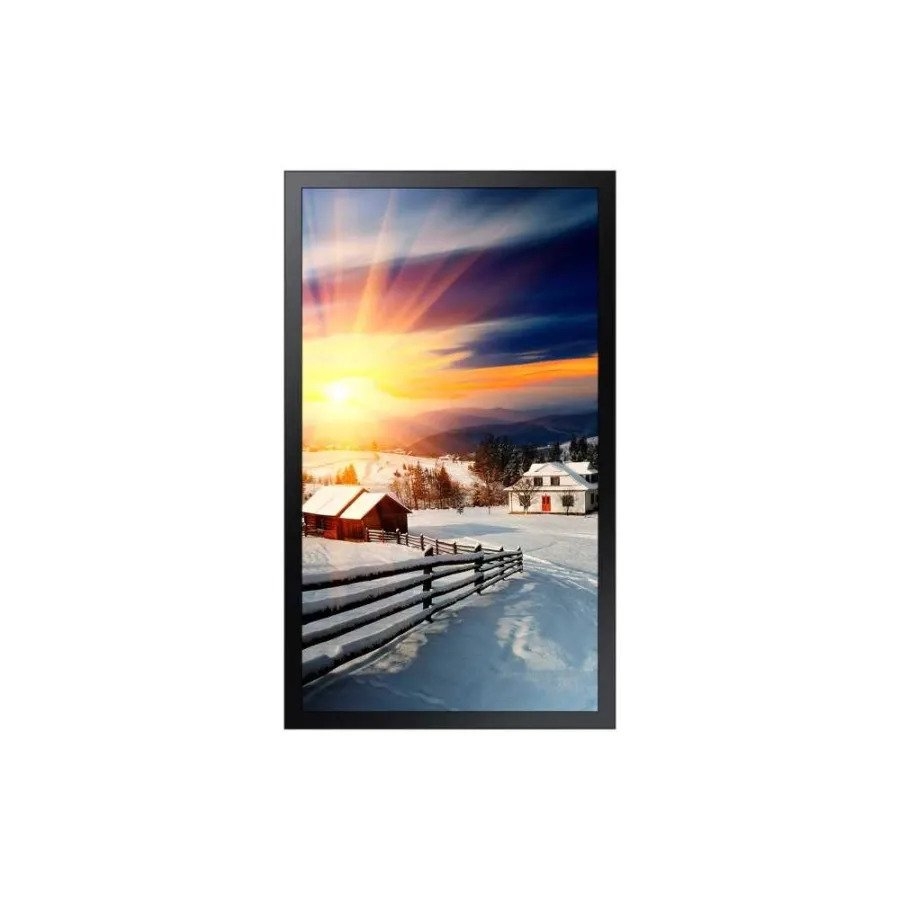

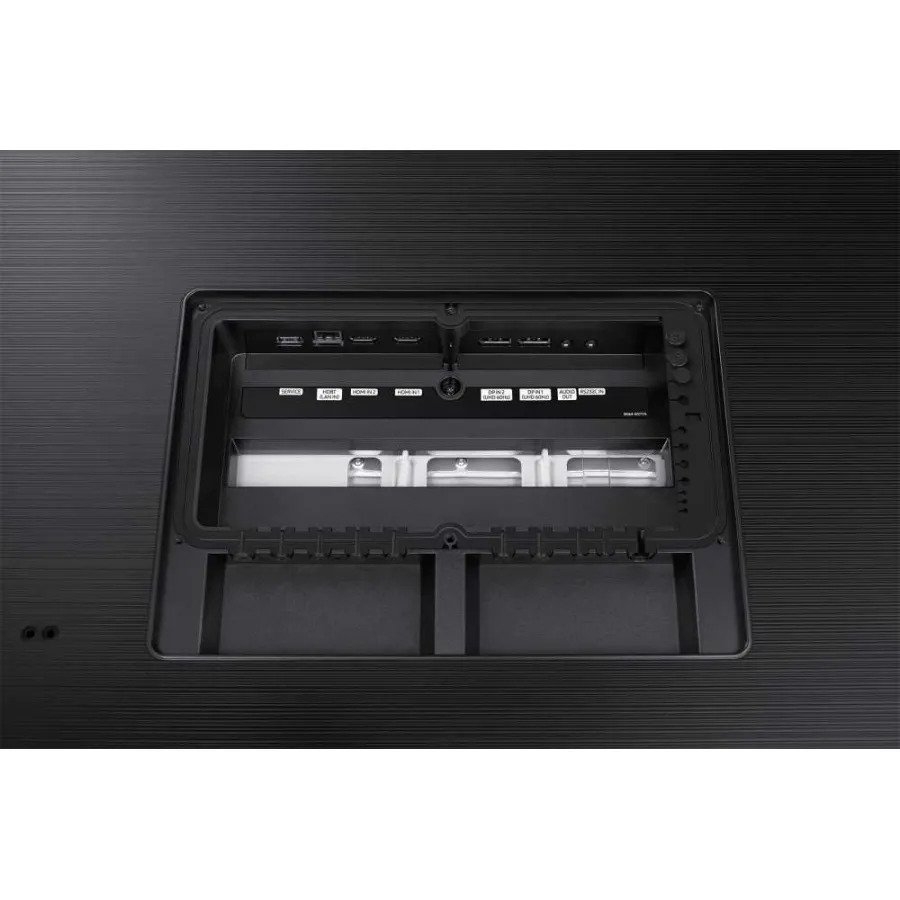

The OH75F is a 75 inch HD display designed to be used in outdoor areas for 24/7 usage. The slim screen at just 85mm is certified IK10 to resist vandalism, the highest level of resistance offered in designated European strength tests for infrastructure used in the public realm. Protection from dust and liquid ingress is rated at IP56, and it has a wide operating temperature of between -30℃ ~ 50℃, giving the unit the ability to resist all but the most extreme weather conditions. Furthermore, a brightness of 2500 NITS with anti-reflective technology makes the screen viewable in bright sunlight. The display has an internal processor, powering Samsung's Magicinfo S4, SSSP4.0 media player for content management, or can be connected to inputs via 2 x HDMI, 1 x HDCP 2.2 or USB. External control can be done through 1 x RS232C and 1 x RJ45.

Downloads

Datasheet (OH75F) (PDF)

0.17MB

Datasheet (OHF series) (PDF)

1.96MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Screen Size	75"
Aspect Ratio	16:9
Resolution	1920x1080
Brightness	2500nit
Viewing Angle	178/178 (H/V)
I/O	HDMI Input, USB
Mounting	VESA
Operating Temperature	-30°C to 50°C
Operating Humidity	10% to 100%
Outdoor Rated	Yes
Built In Media Player	Yes
CPU	ARM
GPU	Yes
LAN	Yes
OS	Tizen
