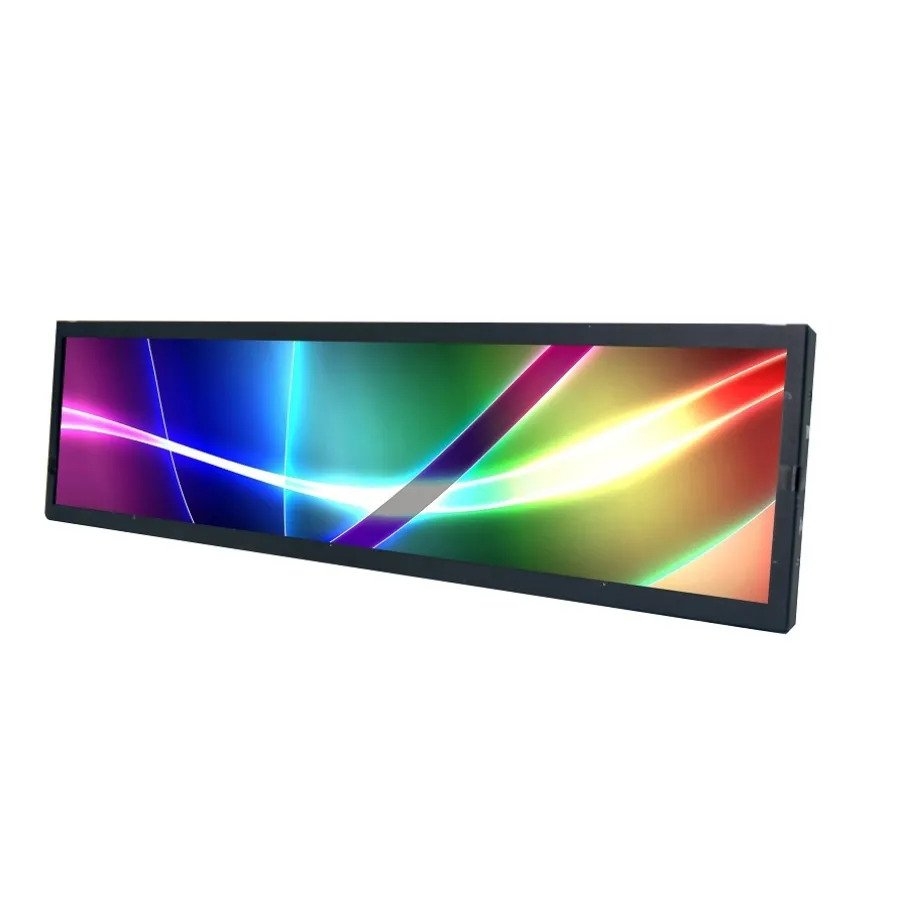

Litemax SSH1922 19″ Ultra Wide Stretched Bar LCD Kit (1920×388) 400 NIT

Name: Litemax SSH1922 19" Ultra Wide Stretched Bar LCD Kit (1920x388) 400 NIT
SKU: SSH1922
Availability: InStock

Litemax Commercial Displays

Litemax SSH1922 19″ Ultra Wide Stretched Bar LCD Kit (1920×388) 400 NIT

SSH1922

Brand: Litemax
400 NITS
1920 x 388 resolution
Size: 495.6mm (W) x 121.3mm (H) x 12.4mm (D)

Product Code: SSH1922

Categories: 2K Resolution Displays, Airport Digital Signage, Car Dealership Digital Signage, DOOH, Food and Drink, Gym and Fitness, Hotel, Litemax Commercial Displays, Retail / POS Digital Signage, Shop by Sector, Specialist Displays, Stretch Displays, Transport

Range: Litemax Commercial Displays

Details

The Litemax SSH1922 is a specially resized 19″ ultra wide stretched LCD monitor at 1920 x 388 resolution. Supplied as a kit of parts comprising of a bare LCD panel and controller board, it allows the integrator maximum flexibility with its super slim format. The product comprises of a 400 NITS LCD panel with multiple video inputs, plus additional features including low power consumption at 22W, and wide viewing angles of 178°(H), 178°(V). This truly eye catching stretched format offers an innovative and fresh approach to grab the public’s attention, and offers OEM designers the perfect solution for areas such as restricted digital signage spaces, public transportation, venue box office information, restaurant menu headers, and vending machine applications.

Downloads

Datasheet (SSH1922) (PDF)

0.26MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Screen Size	19"
Aspect Ratio	16:3.2
Resolution	1920x388
Brightness	400nit
Viewing Angle	178/178 (H/V)
I/O	DVI, HDMI Input, RS232, VGA
Operating Temperature	0°C to 50°C
