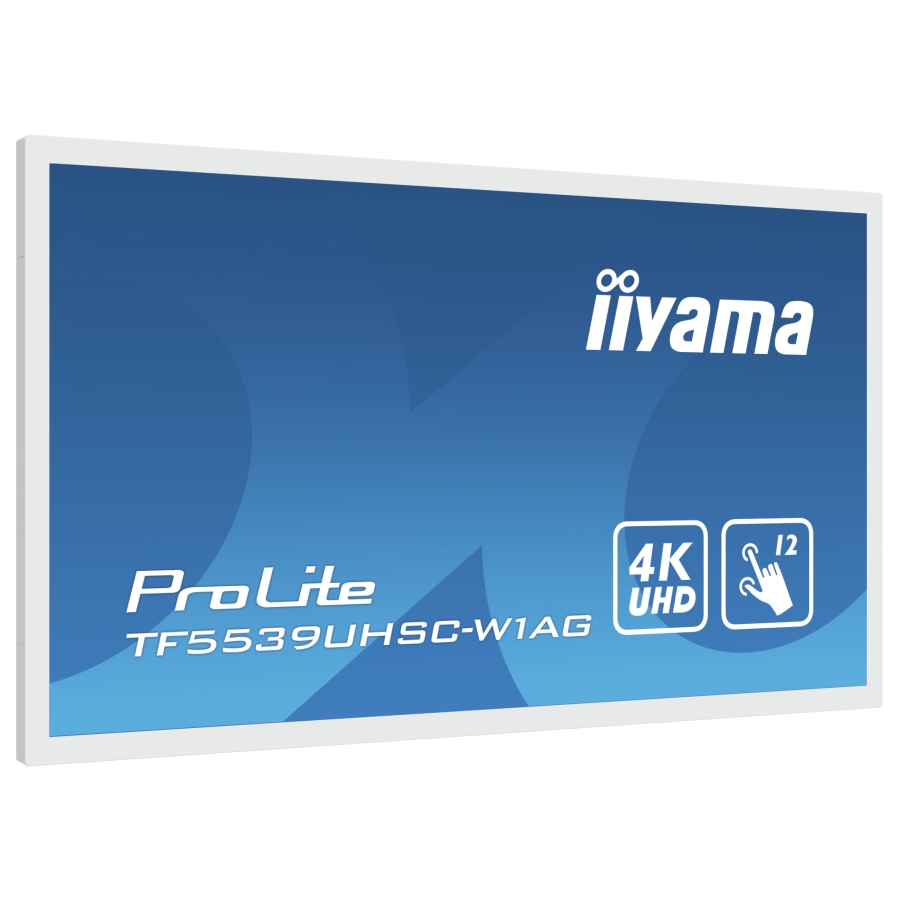

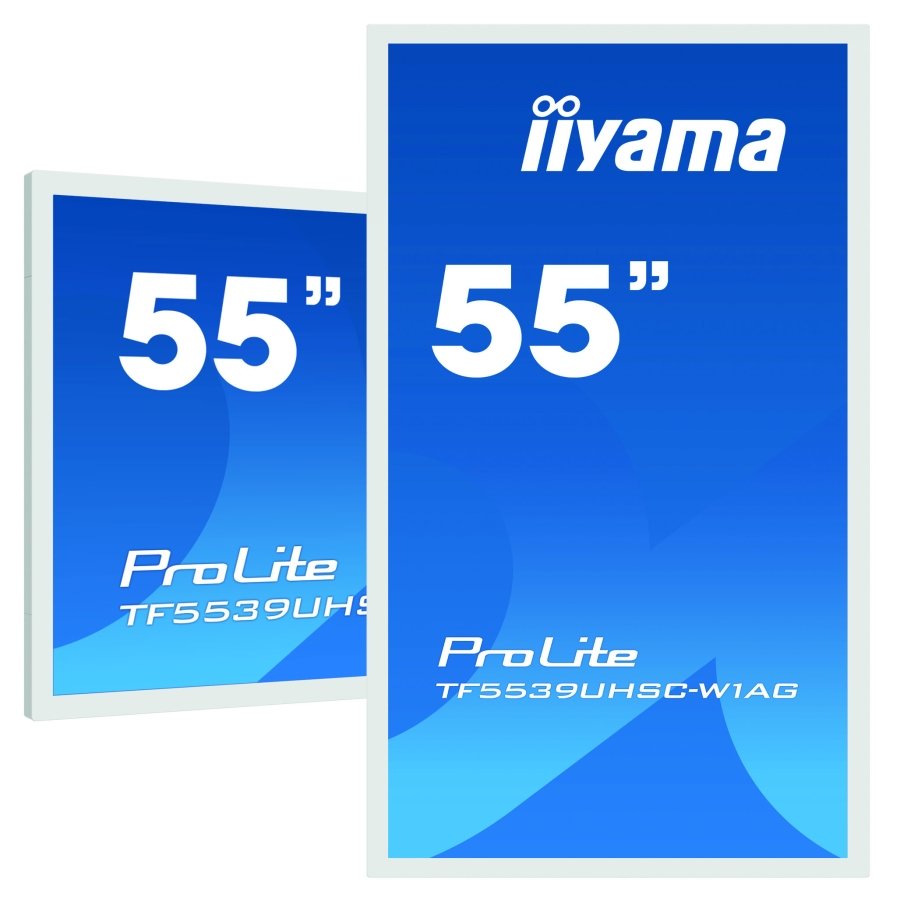

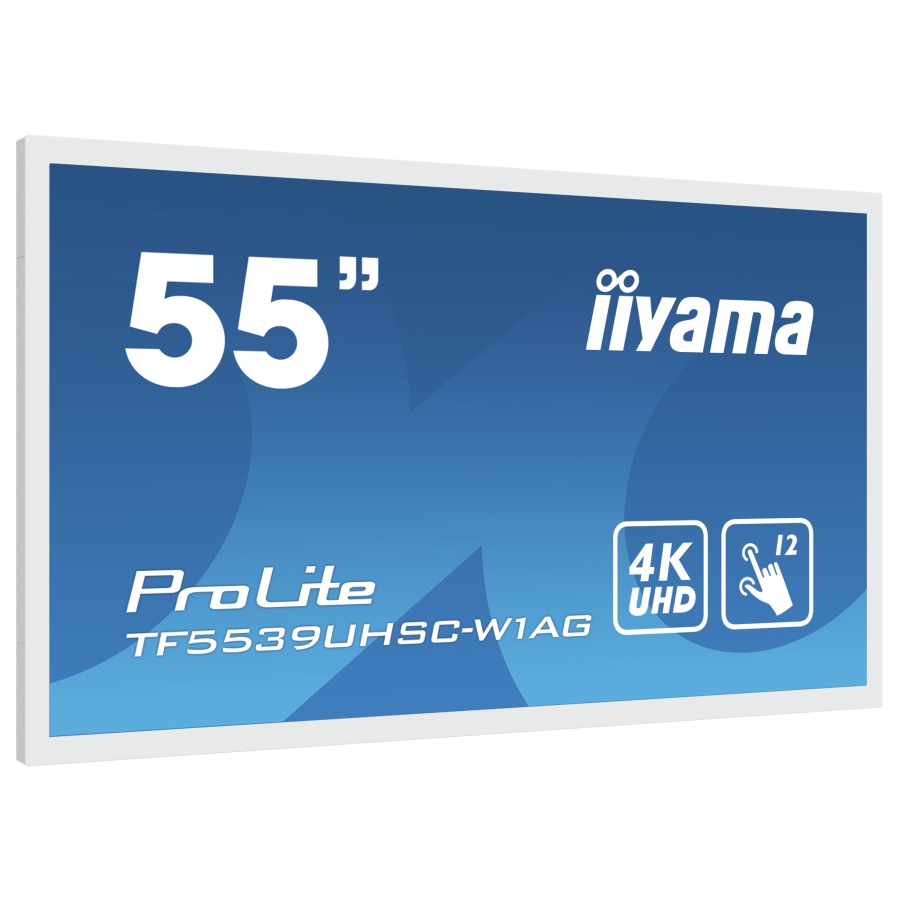

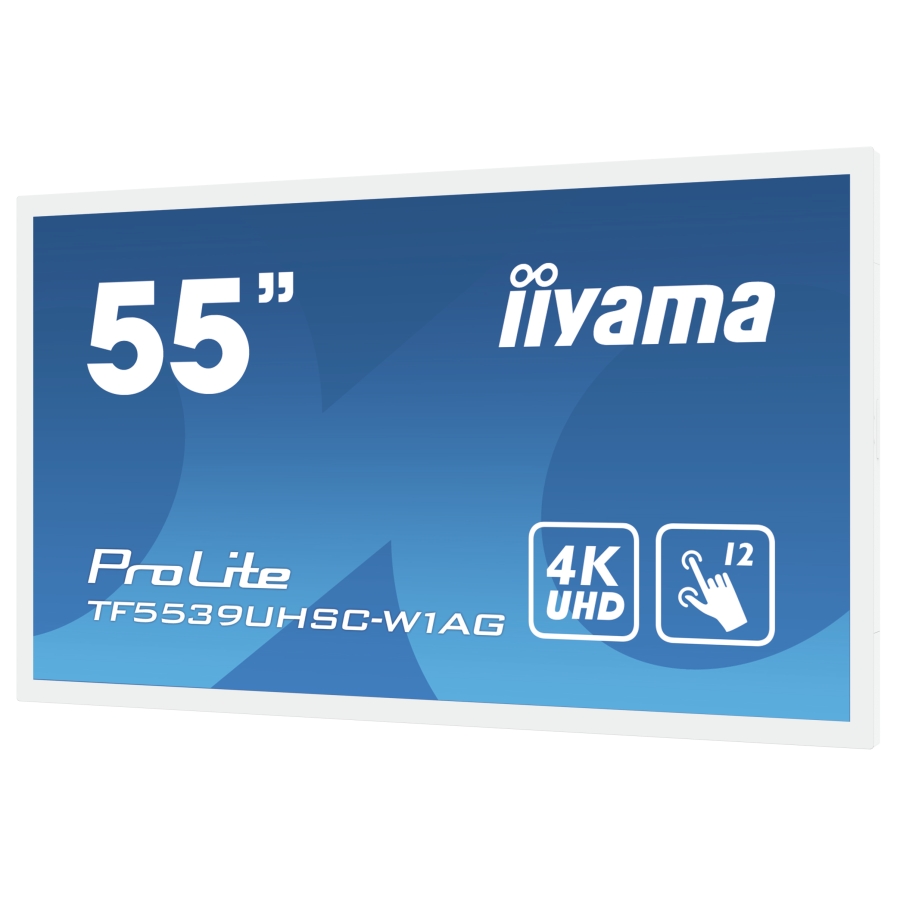

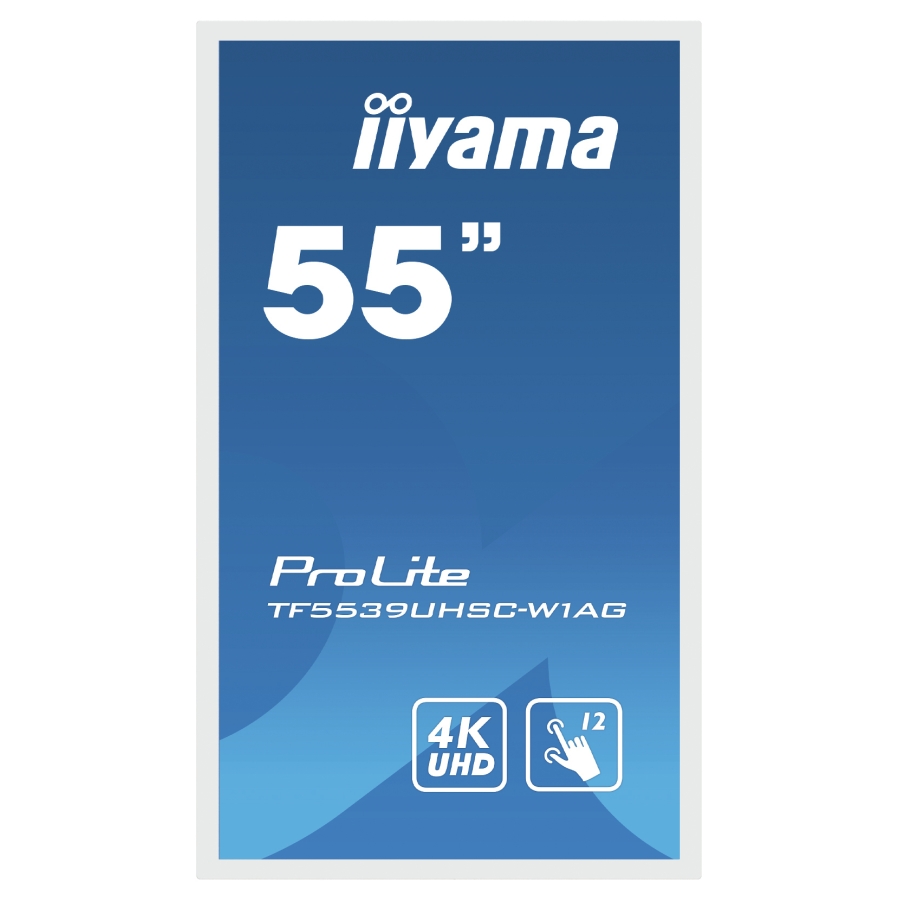

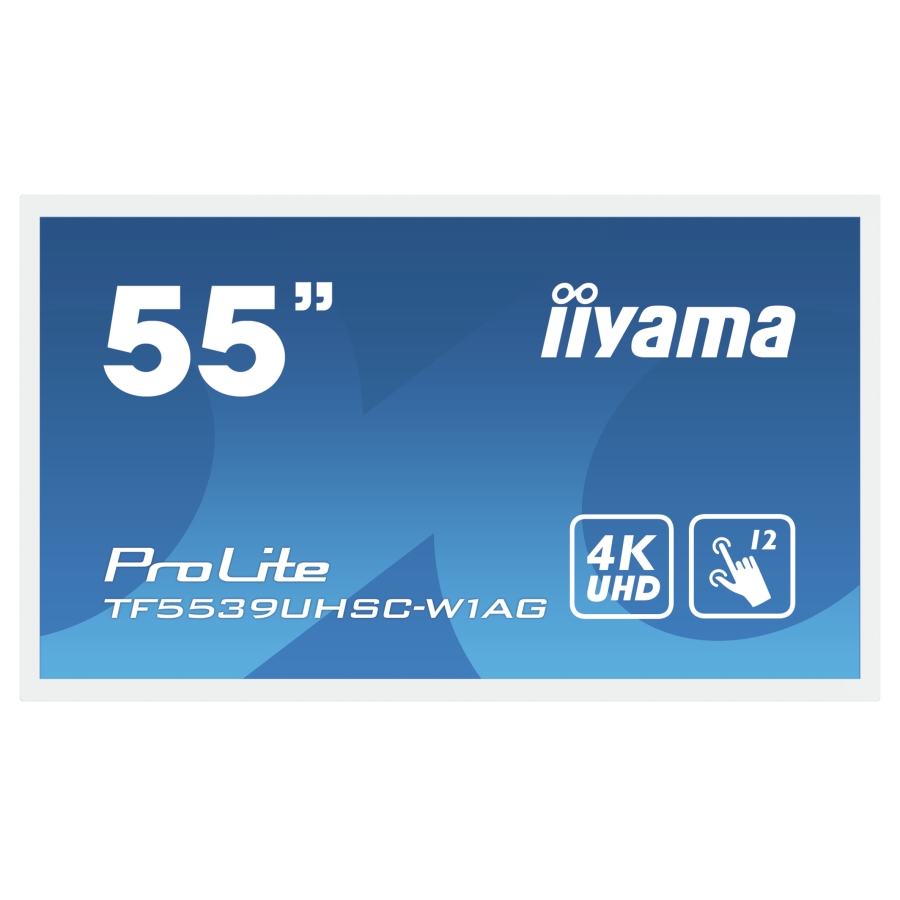

iiyama ProLite TF5539UHSC-W1AG 55″ White Computer 4K Ultra HD Monitor with PCAP Touch and 500nit Brightness

iiyama ProLite TF5539UHSC-W1AG 55″ White Computer 4K Ultra HD Monitor with PCAP Touch and 500nit Brightness

TF5539UHSC-W1AG

  • Touchscreen 139.7 cm (55″) LED IPS
  • 4K Ultra HD 3840 x 2160 pixels 16:9
  • 60 Hz 8 ms 1100:1
  • 155 W
-
+

Details

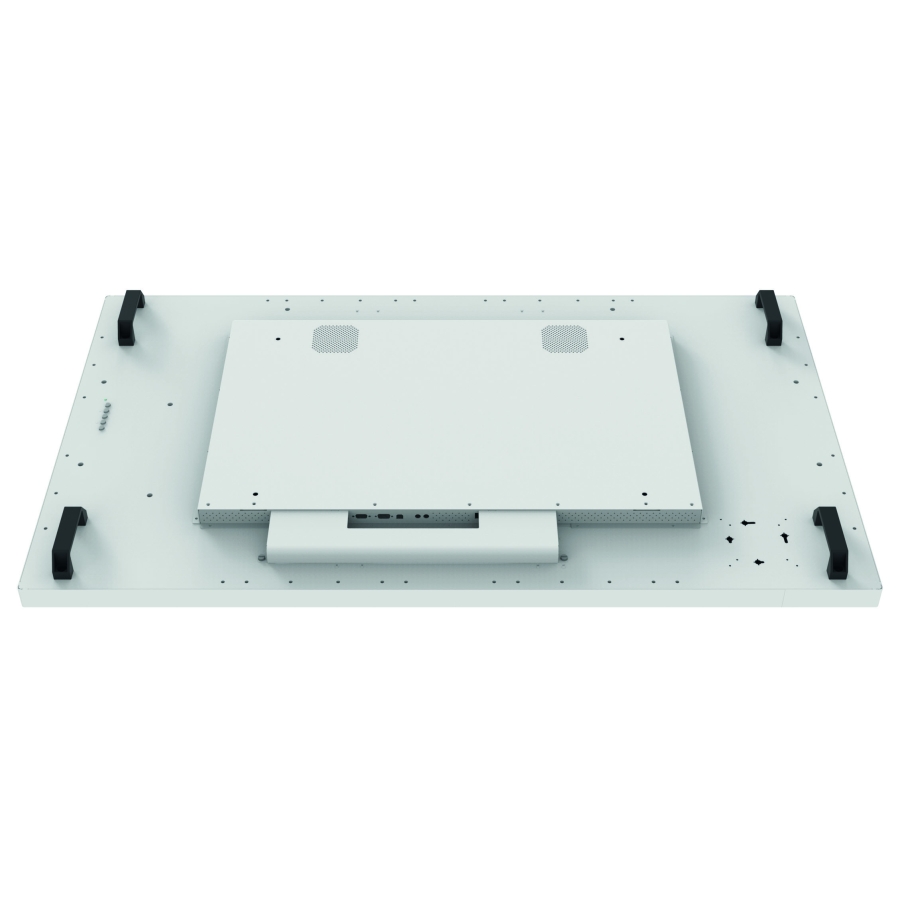

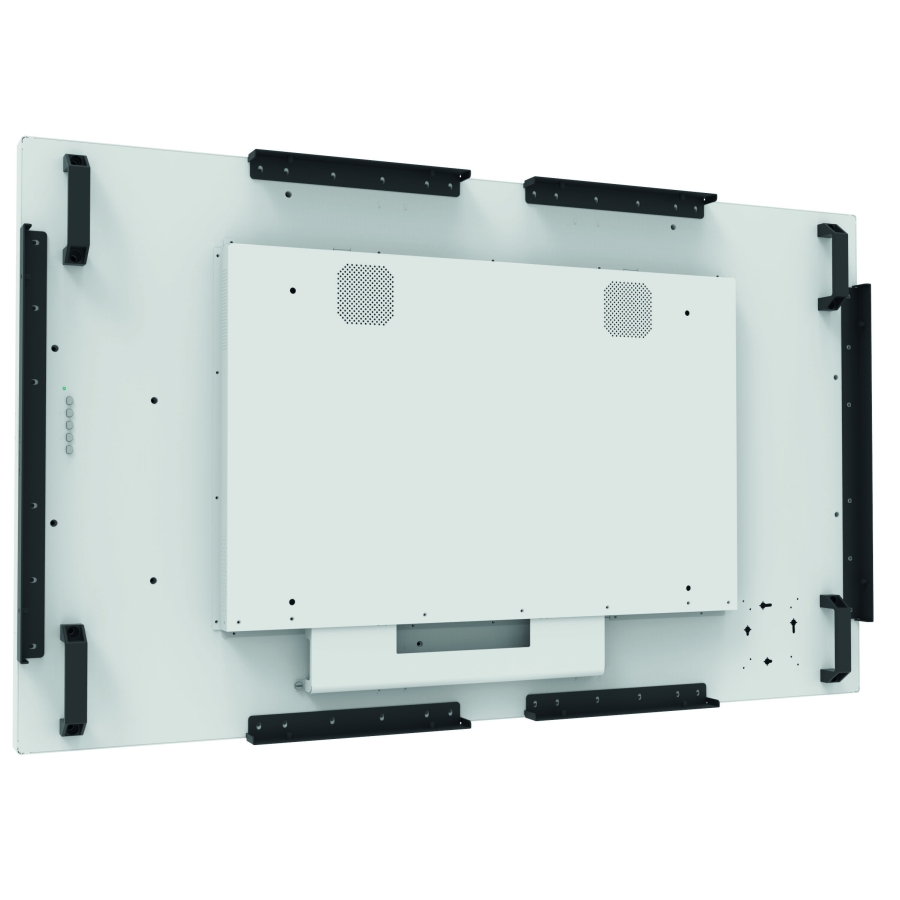

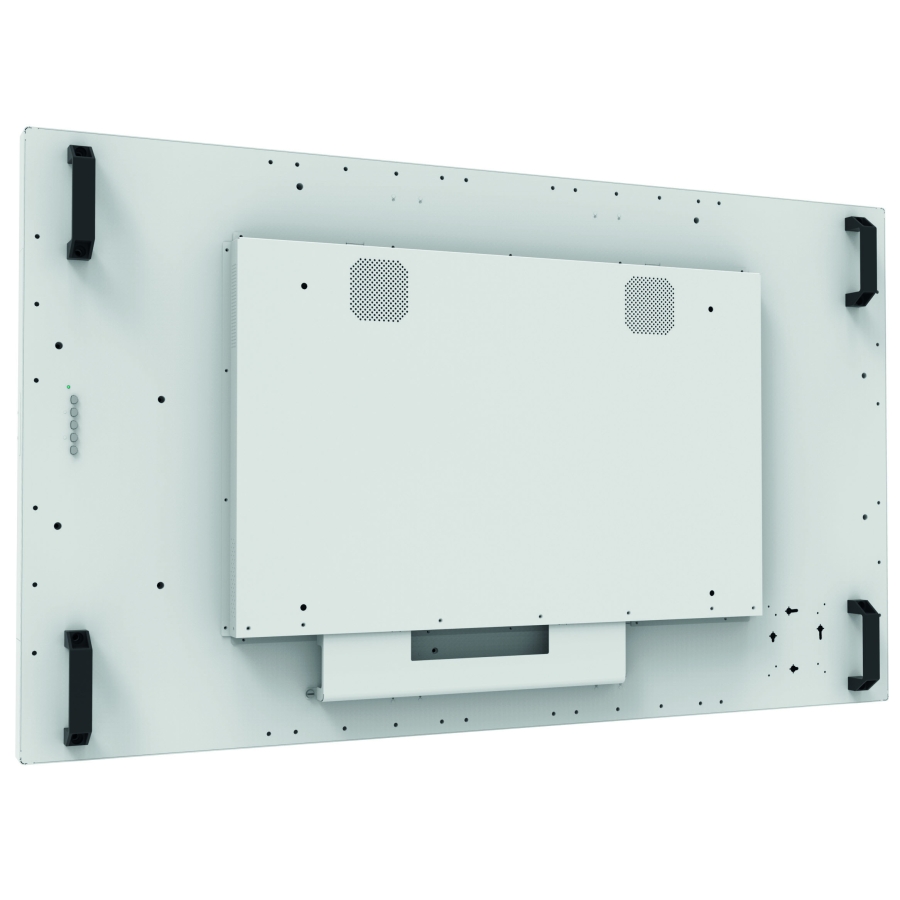

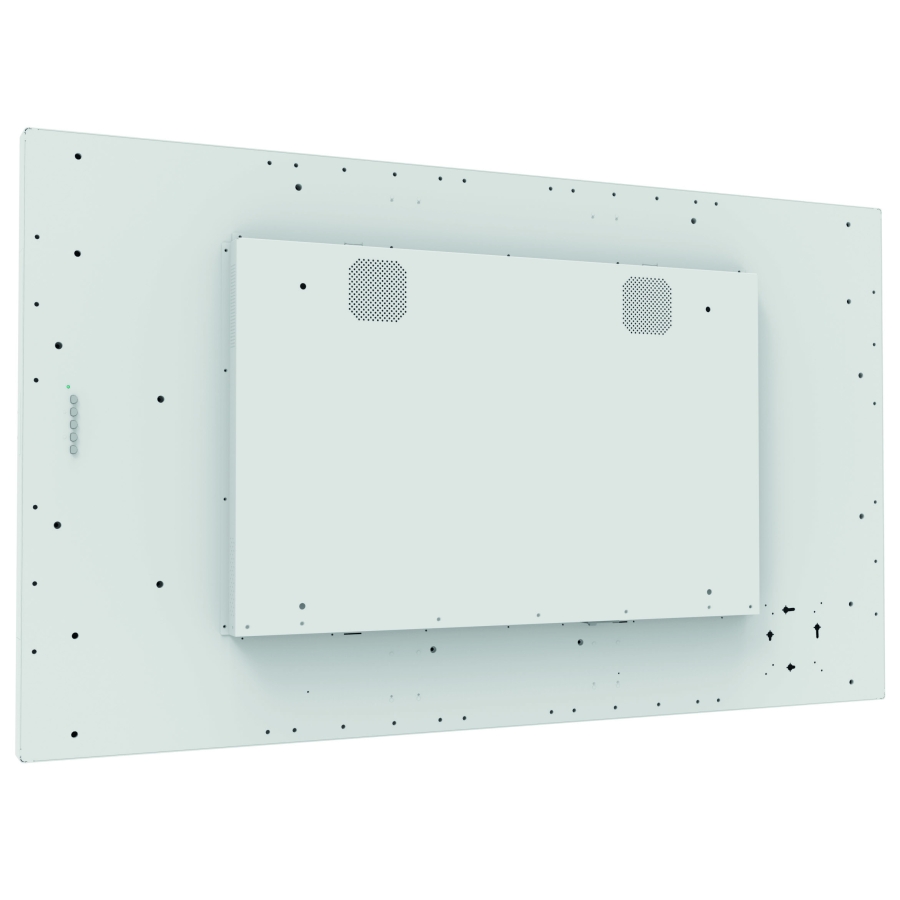

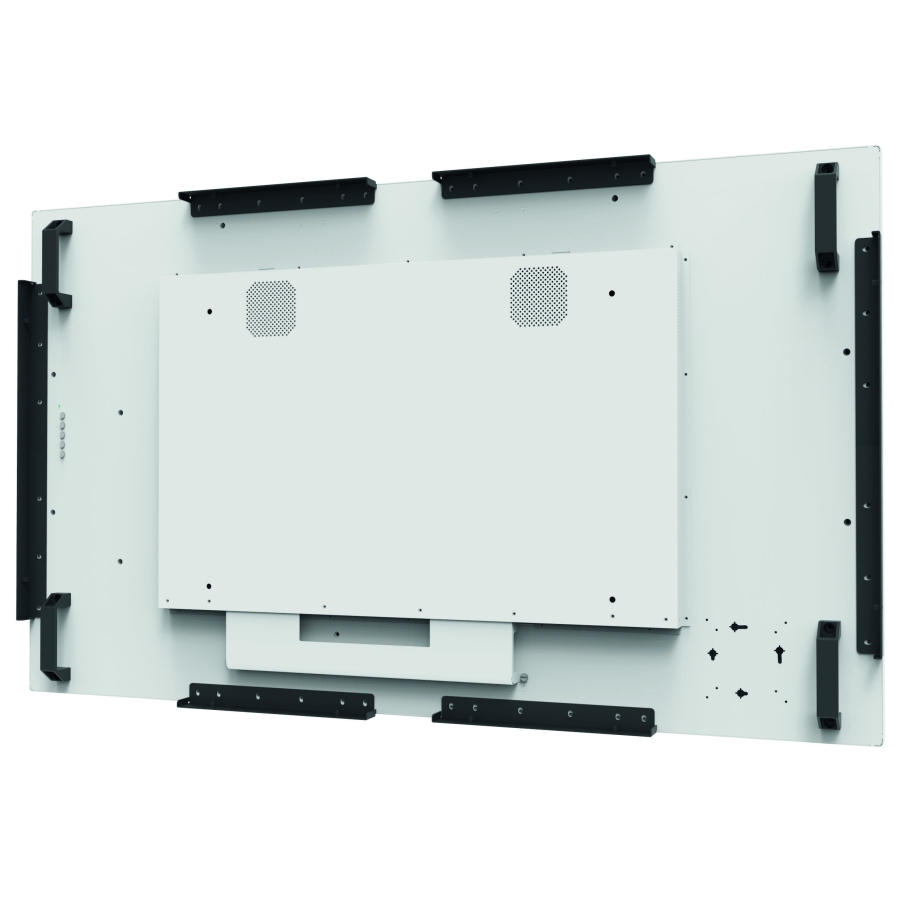

55" Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use The 4K UHD (3840x2160) Open Frame TF5539UHSC-W1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-W1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia. TOUCH TECHNOLOGY - CAPACITIVE This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Display diagonal 139.7 cm (55″)
Display resolution 3840 x 2160 pixels
HD type 4K Ultra HD
Native aspect ratio 16:9
Display technology LED
Panel type IPS
Touchscreen Yes
Touchscreen type Multi-user
Touchscreen technology Projected capacitive system
Touch technology Multi-touch
Number of simultaneous touchpoints 15
Display brightness 500 cd/m²
Response time 8 ms
Screen shape Flat
Contrast ratio (typical) 1100:1
Maximum refresh rate 60 Hz
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 16.78 million colours
Pixel pitch 0.315 x 0.315 mm
Viewable size, horizontal 121.2 cm
Viewable size, vertical 68.3 cm
Digital horizontal frequency 30 – 83 kHz
Display diagonal (metric) 139 cm
Surface hardness 7H
Performance
NVIDIA G-SYNC No
AMD FreeSync No
Multimedia
Number of speakers 2
RMS rated power 16 W
Built-in speaker(s) Yes
Built-in microphone No
Built-in camera No
Design
Product colour White
Housing material Metal
Glass thickness 4 mm

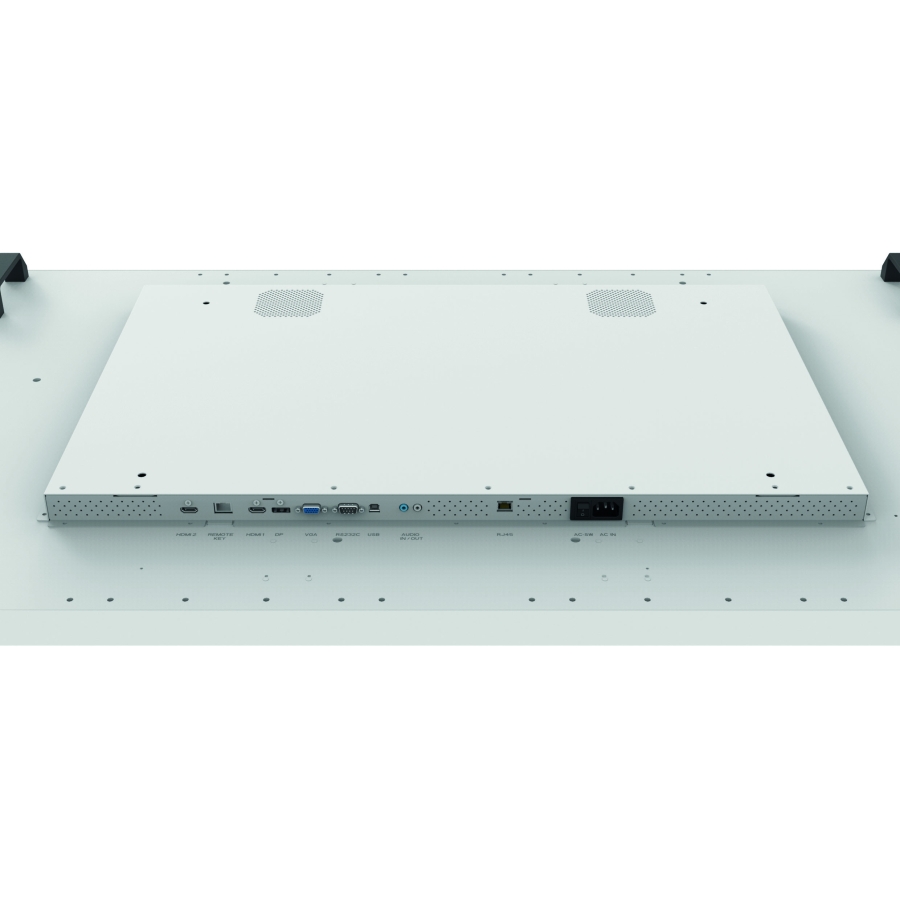

Ports & interfaces
VGA (D-Sub) ports quantity 1
HDMI Yes
HDMI ports quantity 2
HDMI version 1.4/2.0
DisplayPorts quantity 1
DisplayPort version 1.2
Audio input 1
Audio output 1
HDCP Yes
RS-232C Yes
Ergonomics
VESA mounting Yes
Panel mounting interface 600 x 400 mm
Wall mountable Yes
Power
Power consumption (typical) 155 W
Power consumption (standby) 1.5 W
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
European Product Registry for Energy Labelling (EPREL) code 431973
Operational conditions
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Weight & dimensions
Width (without stand) 1271.5 mm
Depth (without stand) 68 mm
Height (without stand) 749.4 mm
Weight (without stand) 41 kg
Packaging data
Package width 1400 mm
Package depth 245 mm
Package height 930 mm
Package weight 46.5 kg
Packaging content
Cables included DisplayPort, HDMI, LAN (RJ-45), USB
Other features
International Protection (IP) code IP54

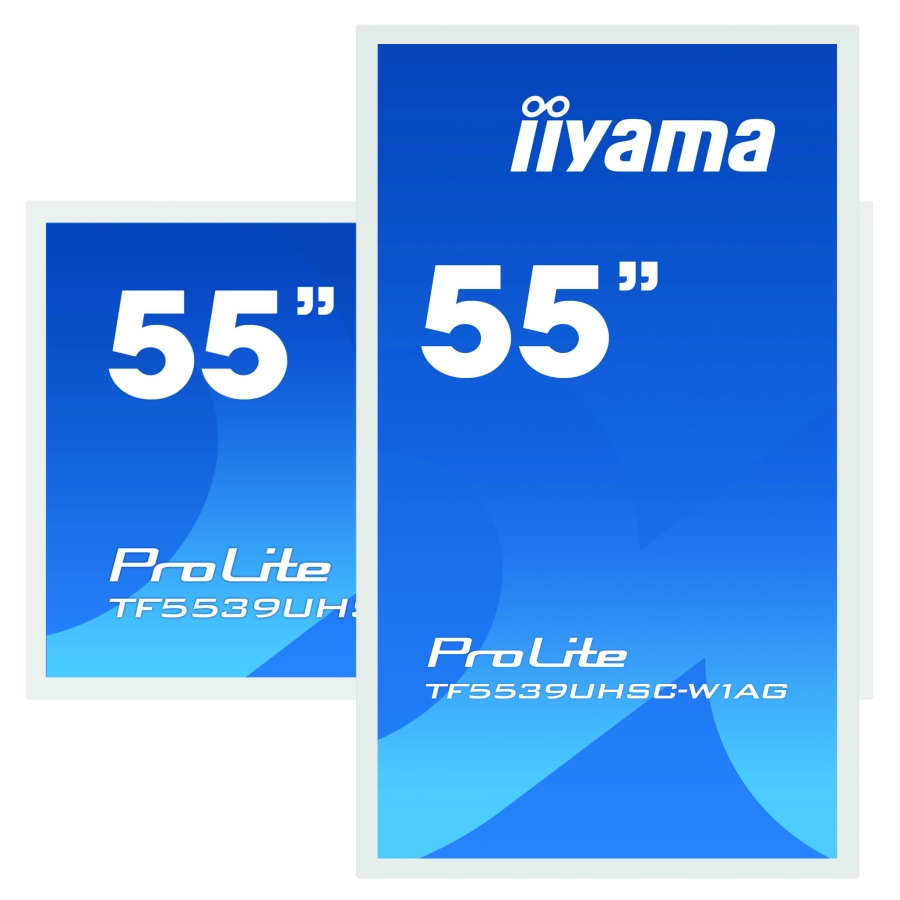

Placement supported Horizontal/Vertical
Mean time between failures (MTBF) 50000 h
Ethernet LAN (RJ-45) ports 1
Logistics data
Harmonized System (HS) code 85285210
Screen Size 55"
Aspect Ratio 16:9
Resolution 3840x2160
Brightness 500nit
Viewing Angle 178/178 (H/V)
Touch Technology PCAP
Speaker Yes
I/O DisplayPort, HDMI, LAN, RJ45, USB
Mounting VESA
Operating Temperature 0°C to 40°C
LAN Yes
Wi-Fi Yes
