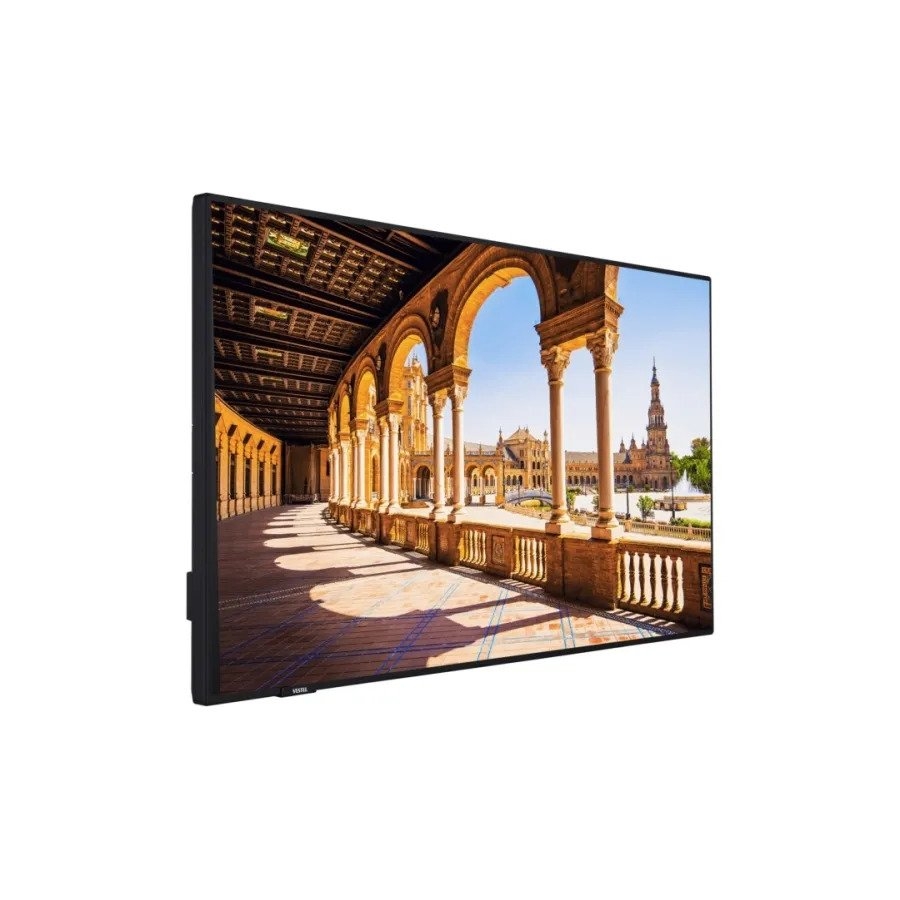

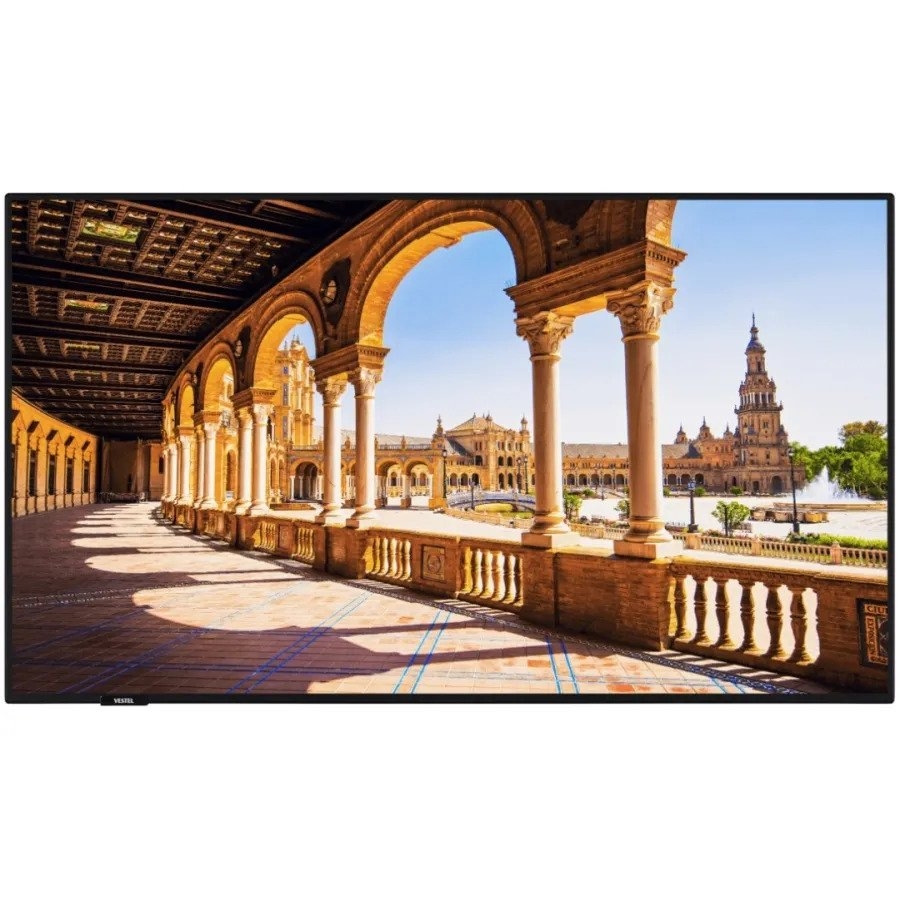

Vestel PF55D-2H 55″ Digital Signage Display

Vestel PF55D-2H 55″ Digital Signage Display

End of Life

Android 9 powered SoC
2 GB DDR4 / 16 GB eMMC
Resolution: 3840×2160 (UHD)
Brightness: 500 cd/m²
Operation: 16/7
Embedded IR/IR Extender Options
30° Tilting Installation
Application Areas: Retail, QSR, Corporate, Control Rooms, Transportation

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: PF55D-2H

Categories: End Of Life Products

Range: Vestel Commercial Displays

Details

The PF55D-2H is a 55″ Digital Signage Display, offering an ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.

The PF55D-2H can mirror the content (to another display) into its display port out coming from its display port in. This creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode. These displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customised banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is a critical feature in signage displays.

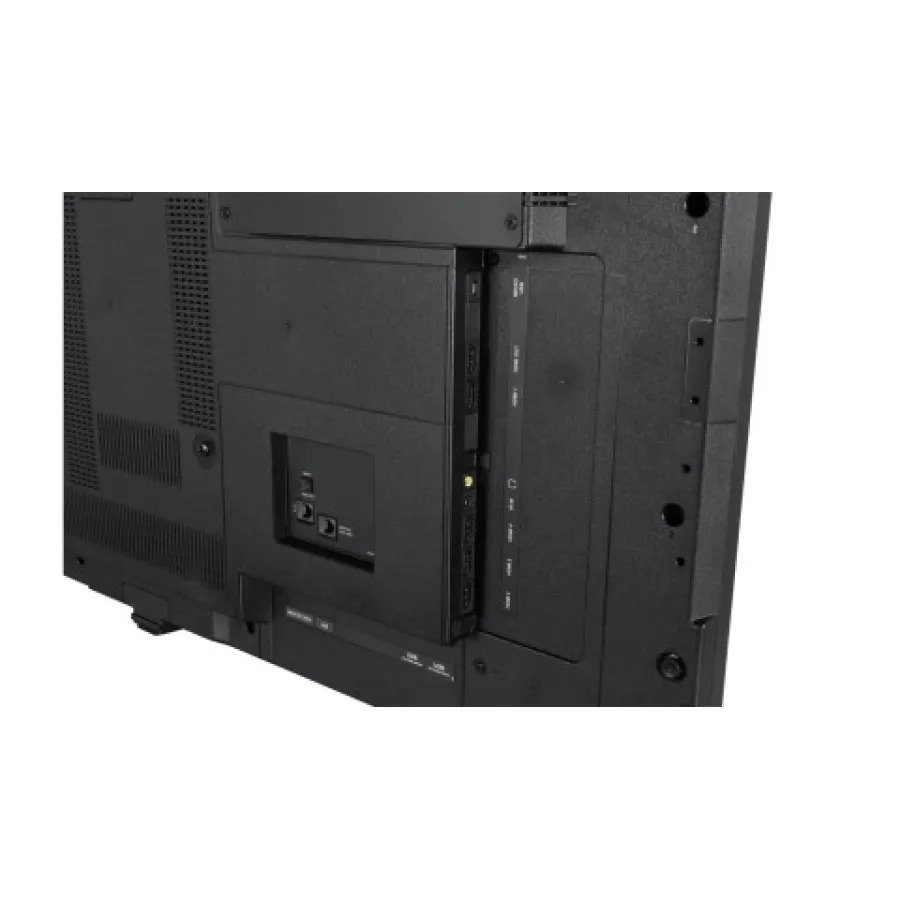

The PF55D-2H lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention. The built in scheduler is one of the many important included features. The scheduler allows you to plan daily routines of when the display is powered on or off, along with selection of different sources or USB playlists.

Downloads

Datasheet (pf55d-2h) (PDF)

3.2MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Screen Size	55"
Aspect Ratio	16:9
Resolution	3840x2160
Brightness	500nit
Viewing Angle	178/178 (H/V)
Speaker	Yes
I/O	HDMI Input, HDMI Output, LAN, RJ45, RS232, USB
Mounting	VESA
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90%
CPU	ARM
GPU	Yes
LAN	Yes
Wi-Fi	Yes
OS	Android
