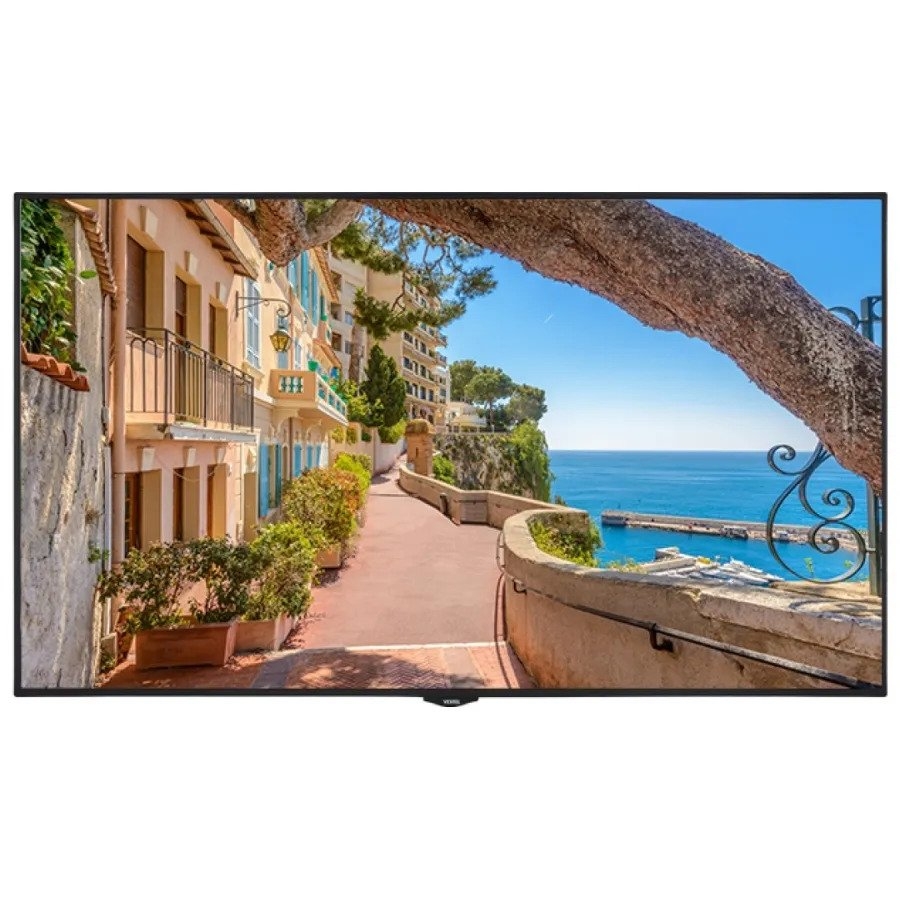

Vestel UHM75UH83/4 75″ Digital Signage Display

Name: Vestel UHM75UH83/4 75″ Digital Signage Display
SKU: UHM75UH83/4
Availability: InStock

Vestel UHM75UH83/4 75″ Digital Signage Display

End of Life

Resolution: 3840×2160 (UHD)
Brightness: 400 cd/m2
Operation: 16/7
Bezel: 16-39 mm (T/R/L), 21-39 mm (B)
Interface: HDMI 2.0 / VGA / USB / RS232 /RJ45 / RJ12 / IR / HP / Audio / Speaker
Application Area: Retail, Restaurants QSR

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: UHM75UH83/4

Categories: 4K Resolution Displays, End Of Life Products

Range: Vestel Commercial Displays

Details

The UHM75UH83/4 is a 75″ Digital Signage Display, with a comprehensive sound performance by using Dolby’s latest technology DAP. With embedded DAP Technology, superior sound performance achieves by intelligent audio equalizing, dialog enhancements and surround sound upmixing. By HDR10 compatibility, customers can guarantee that all featured content meets HDR guidelines and reaches superior picture quality as clearly and brightly as possible. Different than many products in the market, 4K content over HDMI source is supported at 60Hz.

The UHM75UH83/4 is made available to set any Source on startup of the display. It can also be switched on any other signal source using scheduler and failover scenarios. This lets the users to freely control the process of their requirements allowing best user experience. These displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customised banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is a critical feature in signage displays.

To maximize the user experience while using external video devices such as media players, display controllers or PCs, the UHM75UH83/4 has a HDMI Wakeup feature ready to turn on/off the display by simply plugging/unplugging the HDMI cable. The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Downloads

Datasheet (UHM75UH83_4) (PDF)

3MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Screen Size	75"
Resolution	3840x2160
Brightness	400nit
Viewing Angle	178/178 (H/V)
Speaker	Yes
I/O	HDMI Input, HDMI Output, LAN, RJ45, RS232, USB, VGA
Mounting	VESA
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90%
LAN	Yes
