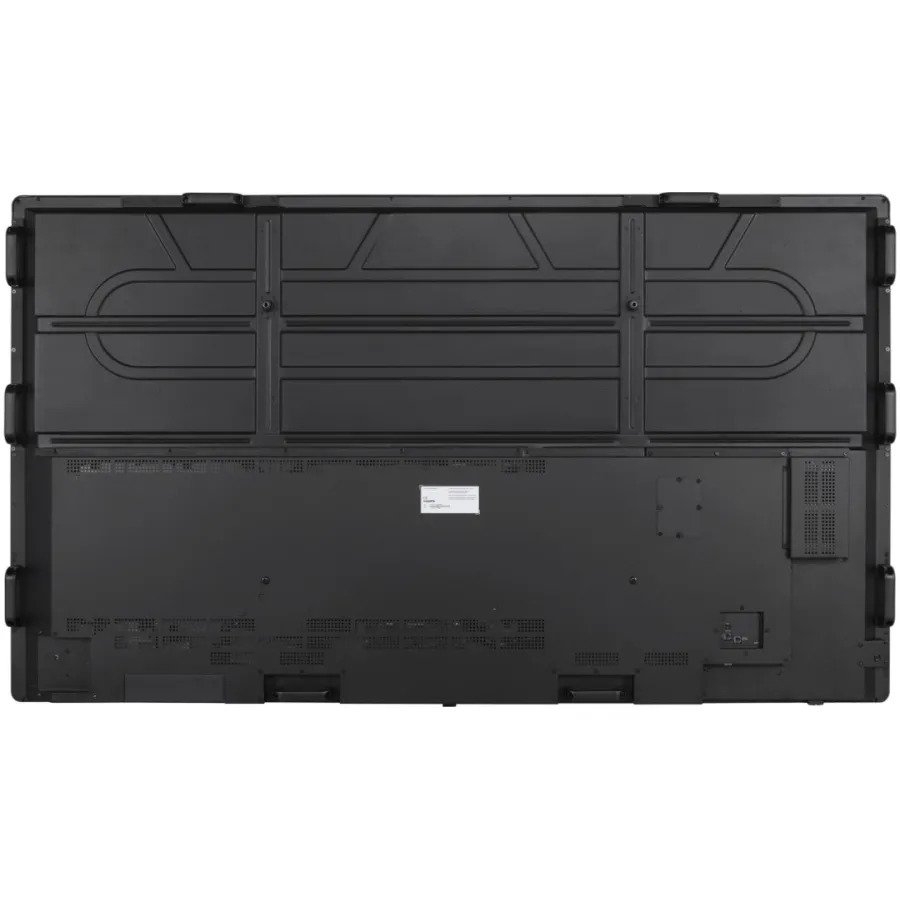

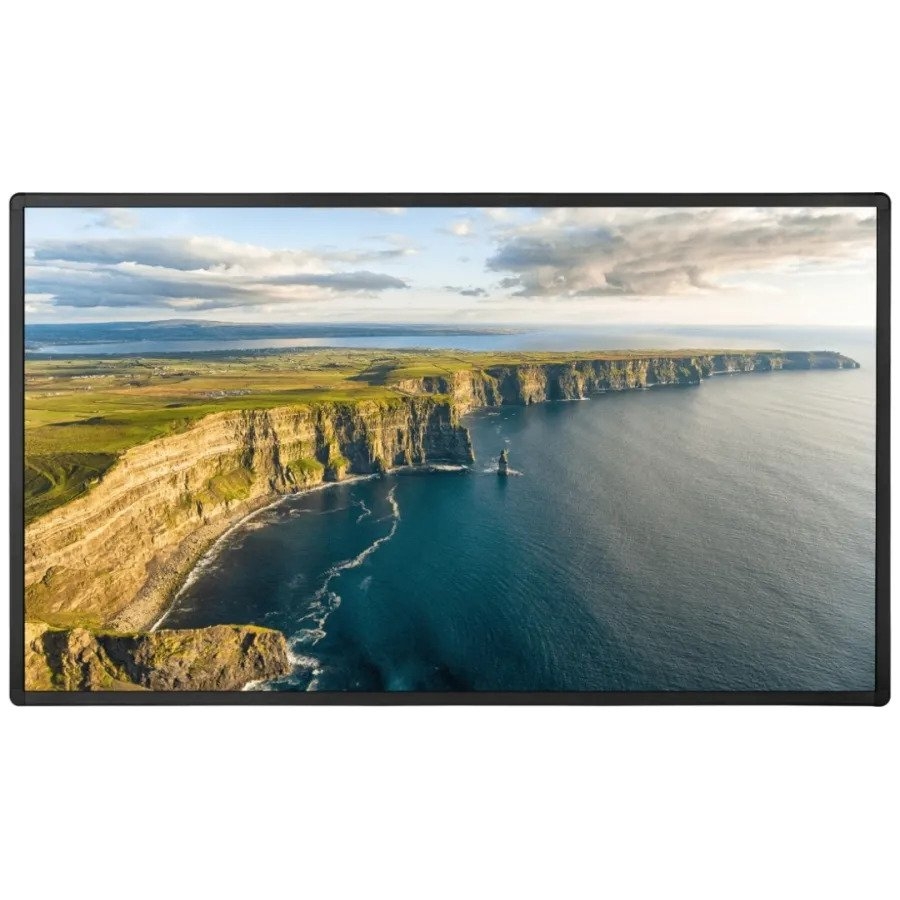

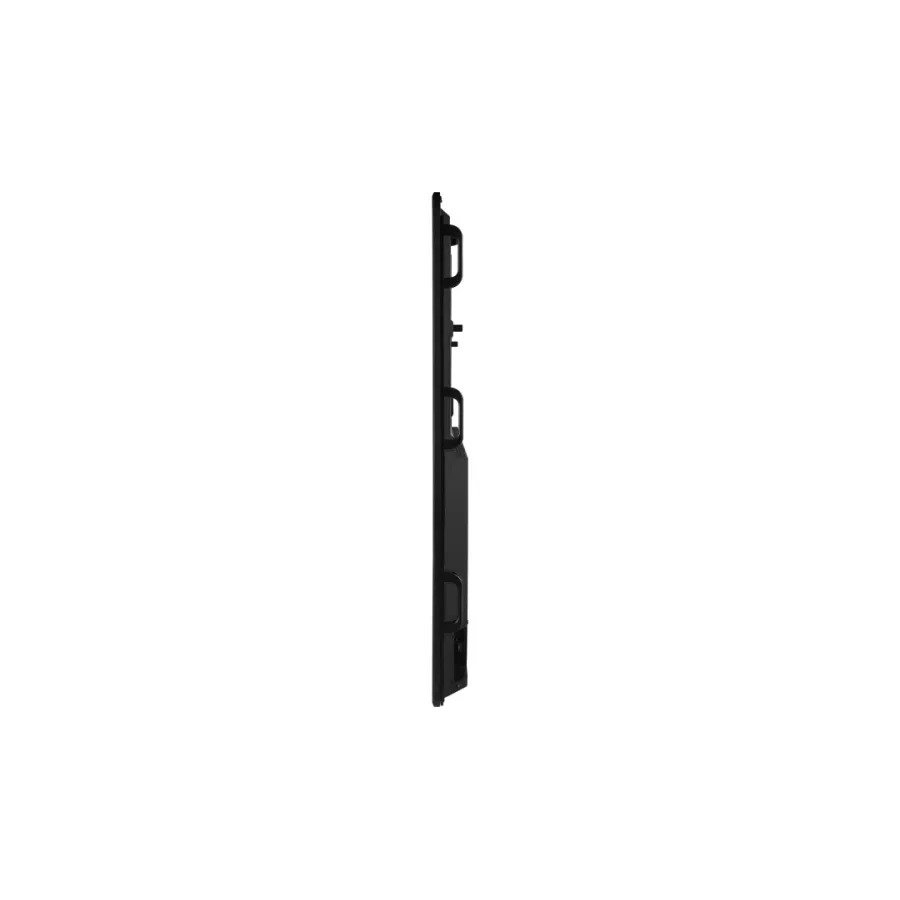

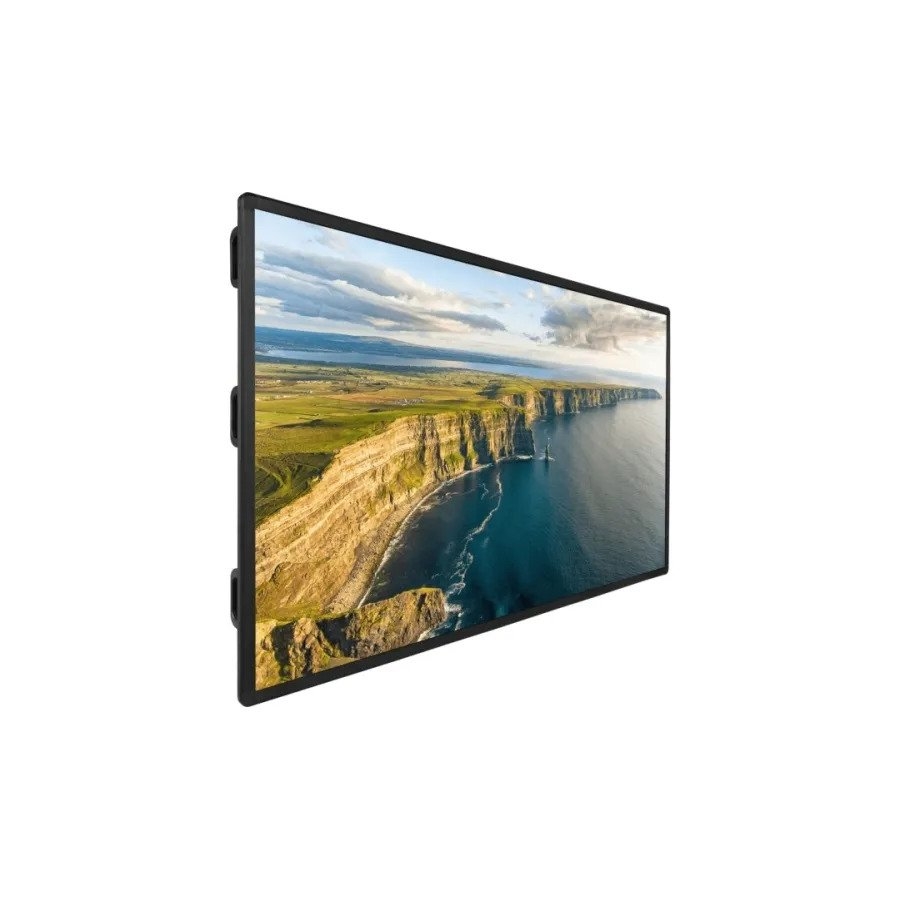

Vestel XD86D-4H 86″ Digital Signage Display

Vestel XD86D-4H 86″ Digital Signage Display

XD86D-4H

  • Android 9 powered SoC
  • 2 GB DDR4 / 16 GB eMMC
  • Resolution: 3840×2160 (UHD)
  • Brightness: 400 cd/m²
  • Haze: 25%
  • Operation: 16/7
  • Interface: HDMI 2.0 / USB 3.0 / RS232 / RJ45 (Gigabit Ethernet) / RJ12 / IR / MicroSD / Audio / Speaker
  • Application Areas: Retail, Entertainment, Corporate, Control Rooms
-
+

Details

The XD86D-4H is a 86″ Digital Signage Display, offering an ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is s found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.
The XD86D-4H can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode. The XD86D-4H also lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen. The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience. These displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customised banner or search for any other signal from video sources.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Screen Size 86"
Aspect Ratio 16:9
Resolution 3840x2160
Brightness 400nit
Viewing Angle 178/178 (H/V)
Speaker Yes
I/O HDMI Input, HDMI Output, LAN, RJ45, RS232, USB
Mounting VESA
Operating Temperature 0°C to 40°C
Operating Humidity 10% to 90%
CPU ARM
GPU Yes
LAN Yes
Wi-Fi Yes
OS Android
