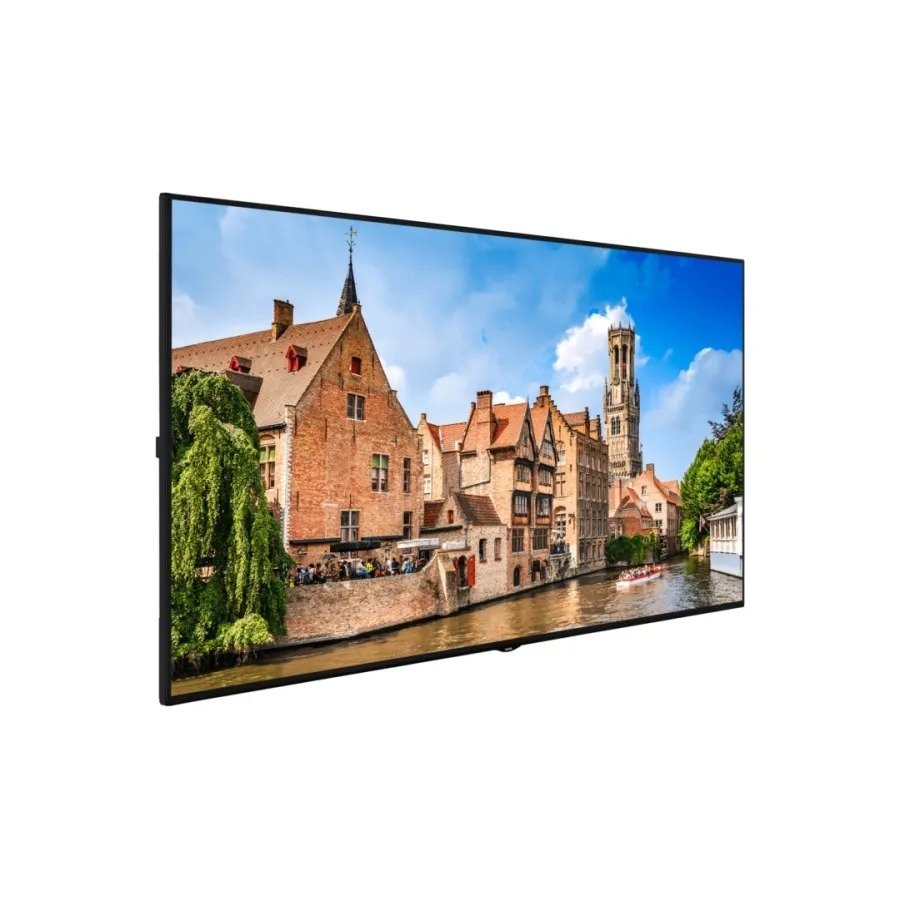

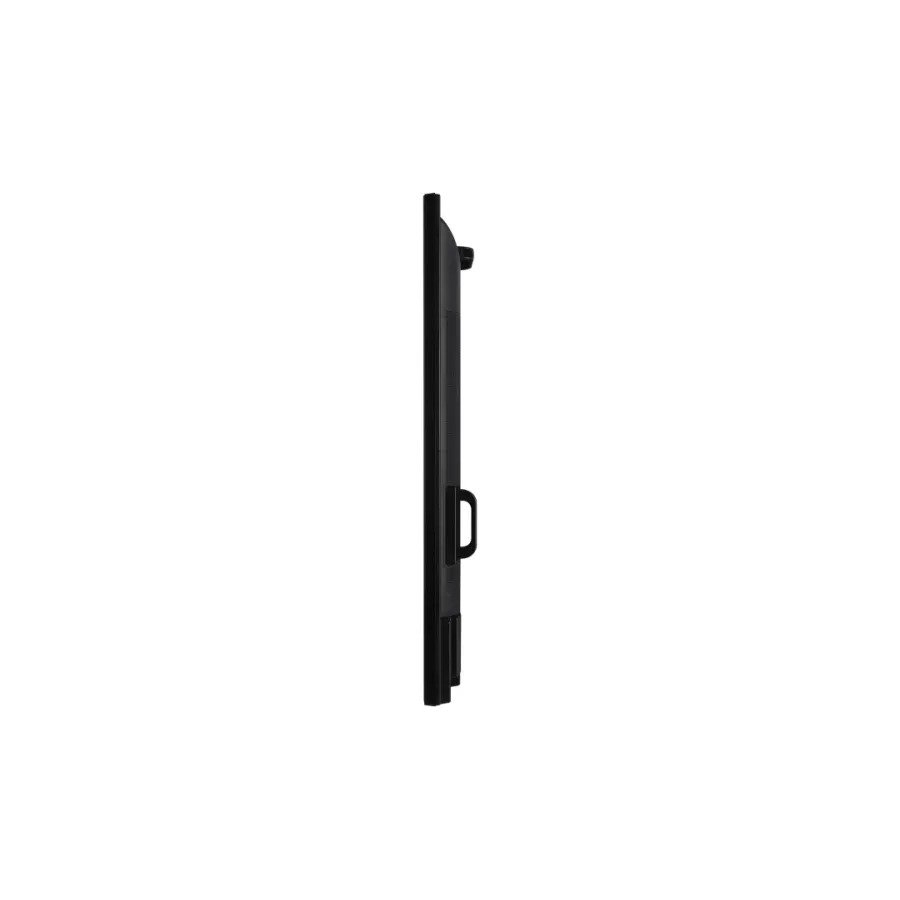

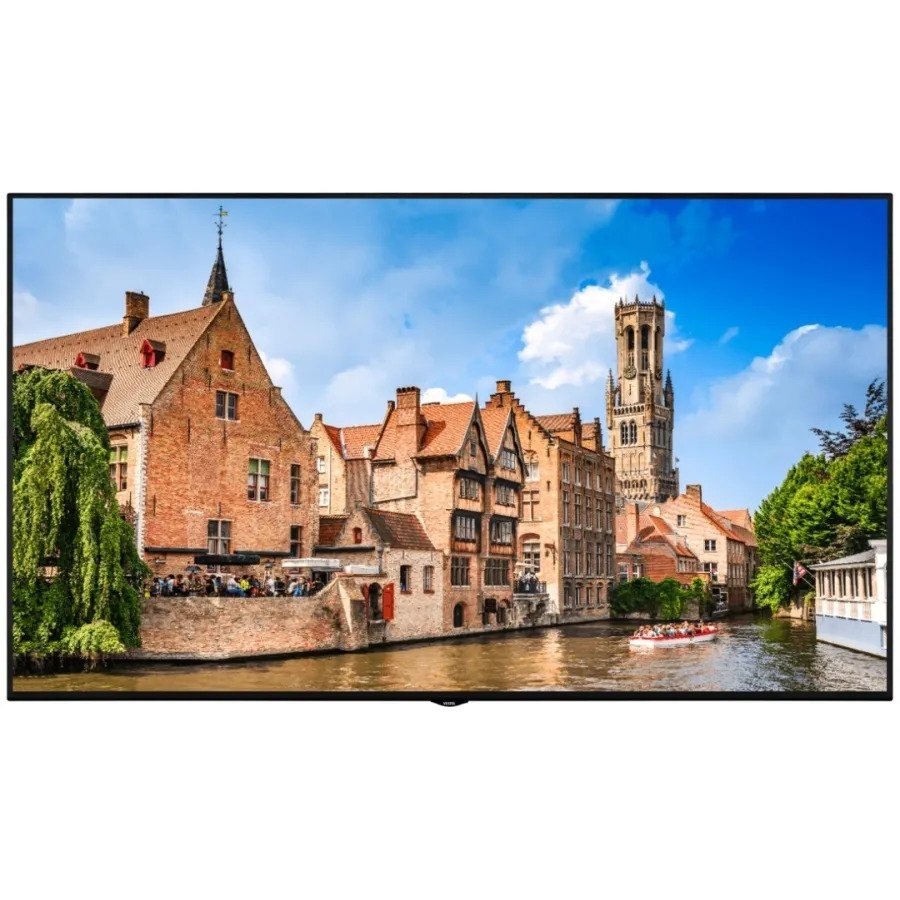

Vestel XN75D-4H 75″ Digital Signage Display

Vestel XN75D-4H 75″ Digital Signage Display

End of Life

Android 9 powered SoC
2 GB DDR4 / 16 GB eMMC
Resolution: 3840×2160 (UHD)
Brightness: 500 cd/m²
Operation: 24/7
Interface: HDMI 2.0 / USB 3.0 / RS232 / RJ45 (Gigabit Ethernet) / RJ12 / IR / MicroSD / Audio / Speaker
Application Areas: Retail, Entertainment, Corporate, Control Rooms

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: XN75D-4H

Categories: End Of Life Products

Range: Vestel Commercial Displays

Details

The XN75D-4H is a 75″ Digital Signage Display, offering an ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.

The XN75D-4H can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode. The XN75D-4H also lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen. In addition, the XN75D-4H has a Pixel Shifting feature which can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Downloads

Datasheet (xn75d-4h) (PDF)

3.16MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Screen Size	75"
Aspect Ratio	16:9
Resolution	3840x2160
Brightness	500nit
Viewing Angle	178/178 (H/V)
Speaker	Yes
I/O	HDMI Input, HDMI Output, LAN, RJ45, RS232, USB
Mounting	VESA
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90%
CPU	ARM
GPU	Yes
LAN	Yes
Wi-Fi	Yes
OS	Android
